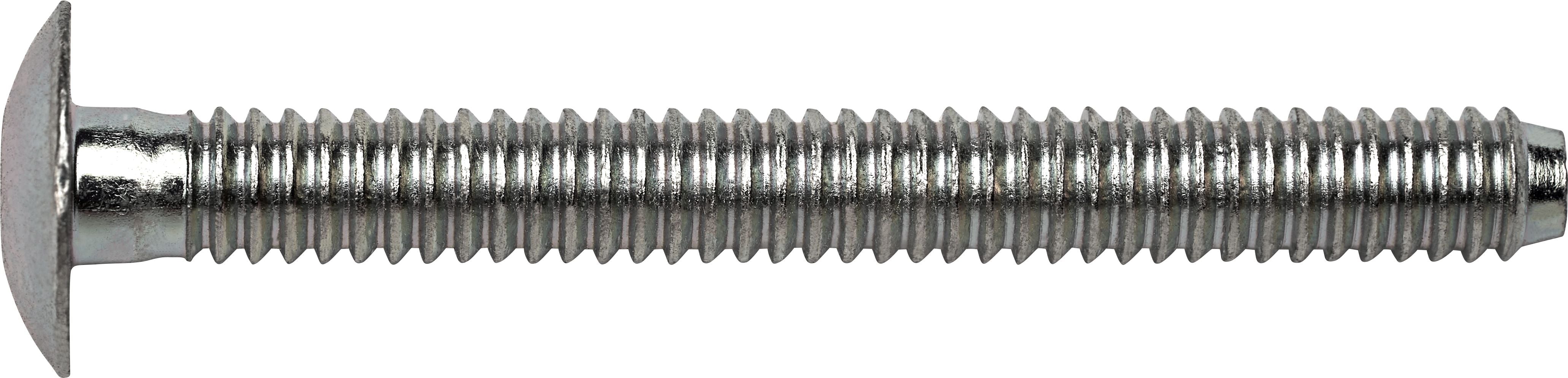

HuckBolt® Magna-Grip® Rivet Lockbolt, Round/Button Head, Carbon Steel, Zinc Plated, 1/4" Diameter, 0.312 to 1.25" Grip Range
(Pack of
10)
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Offers the highest level of vibration resistance available
• Consistently provides high, uniform installed values
• Wide grip range can replace up to four traditional HuckBolts®
• Flush-breaking, lock-groove design provides a wide grip range to reduce inventory requirements
• Easy, consistently accurate installations minimize operator errors and rework costs
• Collar material swaged into the annular pin grooves forms a permanent, vibration-proof connection
• Round/button head design
• Zinc-plated carbon steel
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Multi-Grip Lockbolt Button Head Carbon Steel 1/4"
Couldn't load pickup availability
Multi-Grip Lockbolt Truss Head Steel 3/16"
Couldn't load pickup availability
HuckBolt® C50L® Rivet Lockbolt Button Head 5/8"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Offers the highest level of vibration resistance available
• Consistently provides high, uniform installed values
• Wide grip range can replace up to four traditional HuckBolts®
• Flush-breaking, lock-groove design provides a wide grip range to reduce inventory requirements
• Easy, consistently accurate installations minimize operator errors and rework costs
• Collar material swaged into the annular pin grooves forms a permanent, vibration-proof connection
• Round/button head design
• Zinc-plated carbon steel
Technical Specifications
| Item#: | 1504952 |
|---|---|
| Series | Multi-Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.281 " |
| Grip Range | 0.312 - 1.250 " |
| Head Style | Button (Brazier) Head |
| Length | 2.580 - 2.680 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.480 - 0.520 " |
| Head Height | 0.134 - 0.154 " |
| Clamp Load | 2,000 lb |
| Tensile Strength | 4,000 lb |
| Shear Strength | 2,700 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.35 lb |
