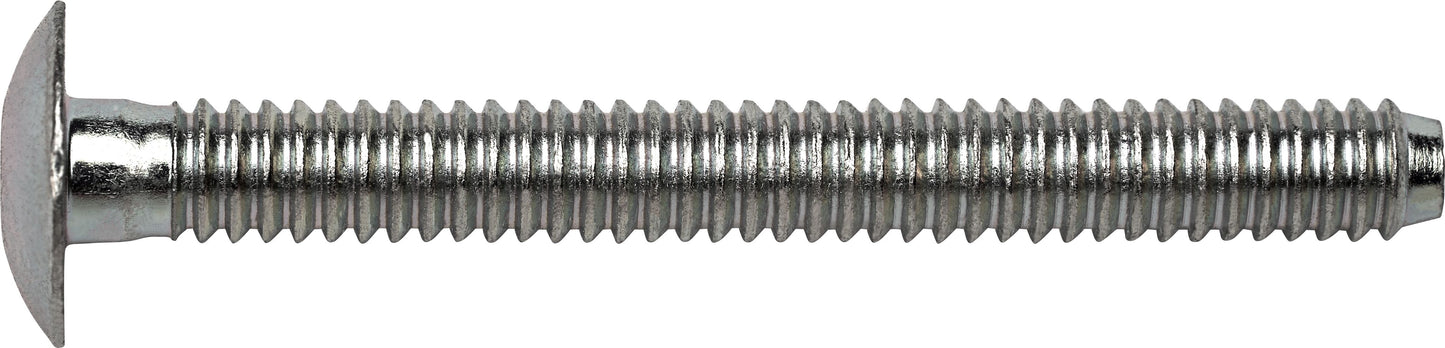

Multi-Grip Rivet Lockbolt, Truss Head, Steel, 3/16" Diameter, 0.062 to 0.625" Grip Range, 1.788" Length
(Pack of
100)
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Multi-Grip Lockbolt Button Head Aluminum 1/4"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"
Couldn't load pickup availability
Multi-Grip Lockbolt Button Head Carbon Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Technical Specifications
| Item#: | 1543721 |
|---|---|
| Series | Multi-Grip |
| Diameter | 3/16 " |
| Maximum Hole Size | 0.203 " |
| Grip Range | 0.062 – 0.625 " |
| Head Style | Truss Head |
| Length | 1.788 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.406 – 0.472 " |
| Head Height | 0.076 – 0.090 " |
| Tensile Strength | 1,400 lb |
| Shear Strength | 1,725 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.4 lb |
