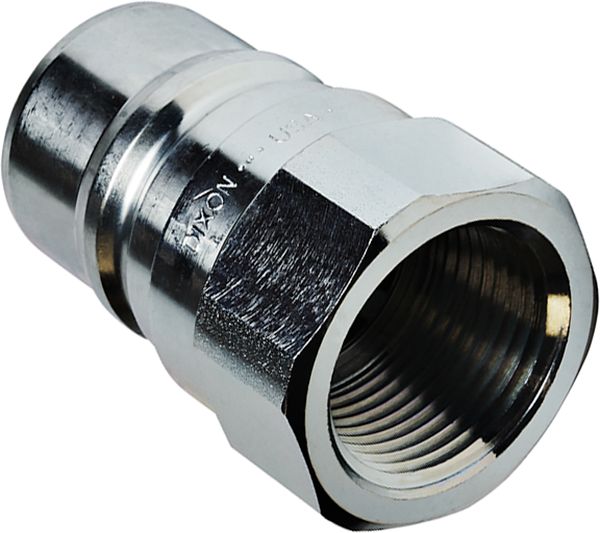

Hydraulic Quick Connect Nipple, Steel, ISO 16028, 3/8" x 1/2-14, Female NPTF, 2.74" Length, 4350PSI
(Pack of
1)
SKU:29976 Item#: 29976
Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F (–20°C to +100°C)
• Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Couldn't load pickup availability
Catalog page#: 8-83
Frequently Bought Together
DOT Elbow Male 90° Brass 3/8 x 1/8-27
Couldn't load pickup availability
DOT Swivel Branch Tee Male Brass 3/8 x 3/8 x 3/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 90° Brass 1/2 x 1/4-18
Couldn't load pickup availability
DOT Branch Tee Male Brass 3/8 x 3/8 x 3/8-18
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/8-27
Couldn't load pickup availability
DOT Swivel Branch Tee Male Brass 3/8 x 3/8 x 3/8"
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability

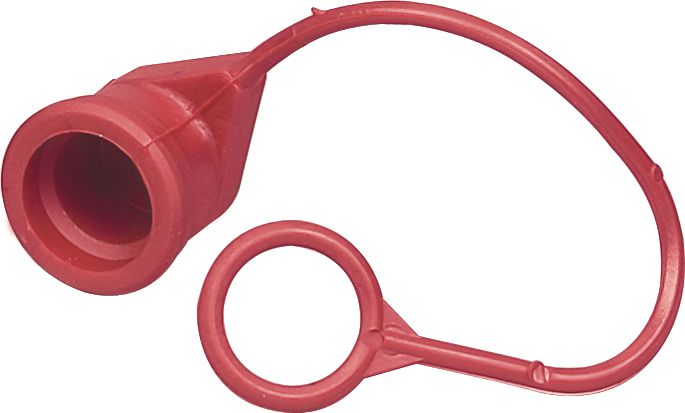

Push On Tapered Cap/Plug Polyethylene 1/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1" x 1-11-1/2
Couldn't load pickup availability
Coupler, ISO16028, 1/2" Body, 1/2"- 14 Female NPTF, Steel
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F (–20°C to +100°C)
• Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Technical Specifications
| Item#: | 29976 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 16028, NFPA T3.20.15 (HTMA) |
| Standards | ISO 16028, NFPA T3.20.15 (HTMA) |
| Body Size | 10mm (3/8") |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 17,400 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Flow | 18 gal/min |
| Length | 2.46 " |
| Temperature Range | -40 to 212 F |
| Working Pressure | 4,350 PSI |
| Hex Size | 1.06 " |
| Maximum Diameter | 1.14 " |
| Coupled Length | 4.57 " |
| Tip Diameter | 0.7765 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
