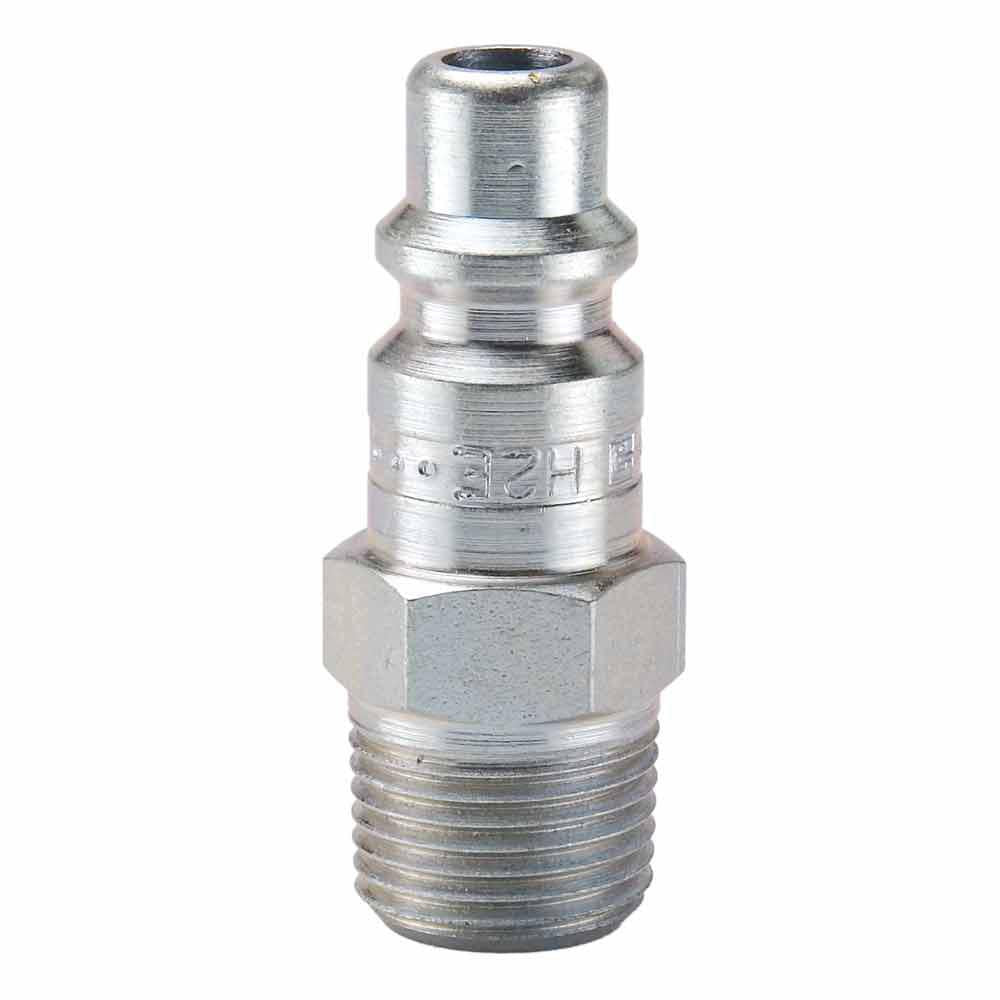

Industrial Interchange Nipples, Steel, Standard Industrial, Male NPTF, 3/8" Body Size, 1/8-27 Thread Size
(Pack of
1)
SKU:1268613 Item#: 1268613
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.
• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 3/8-18
Couldn't load pickup availability
Coupler, Schrader, 1/4'' Body, 1/4-18 Female NPT, Aluminum
Couldn't load pickup availability
Universal Safety Coupler Aluminum 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 3/8-18 (-6)
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1268613 |
|---|---|
| Manufacturer Model #: | H00E |
| Type | Nipple |
| Style | Standard Industrial |
| Body Size | 3/8 " |
| Thread Style | Male NPTF |
| Thread Size | 1/8-27 |
| Working Pressure | 300 PSI |
| Material | Steel |
| Length | 1.68 " |
| Hex Size | 0.62 " |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
Product Restrictions
