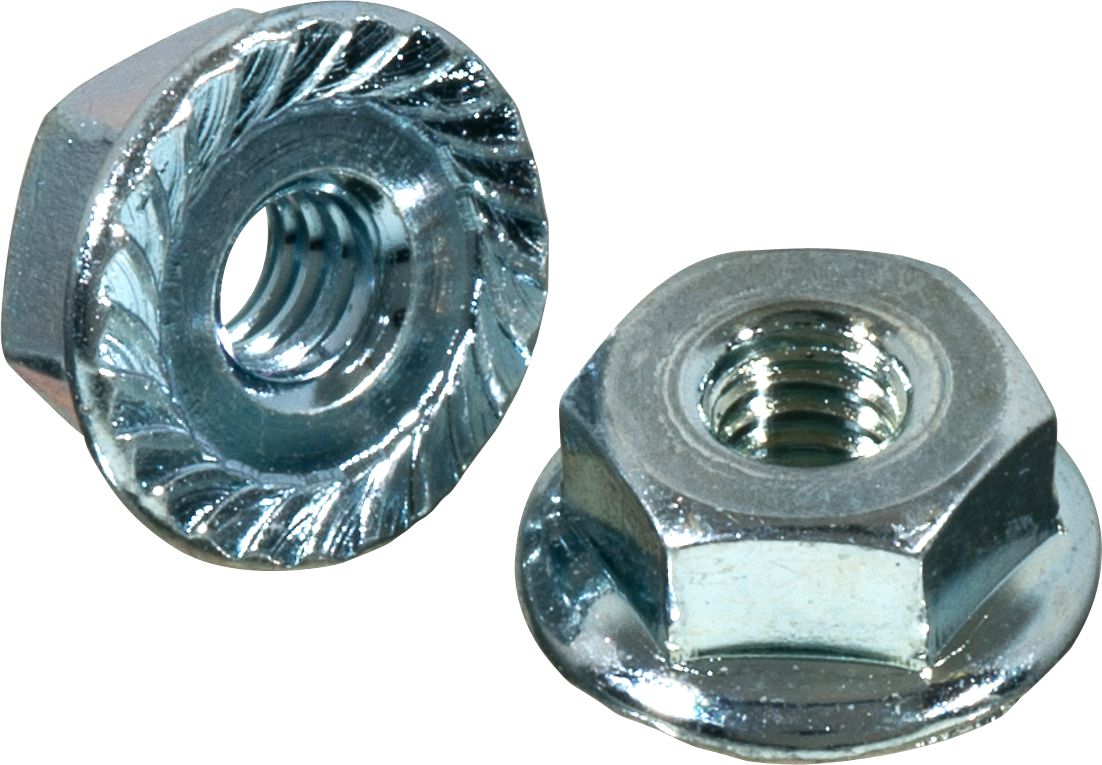

Serrated Flange Locknut, Steel, Zinc Finish, Coarse Thread, 0.460" Flange Diameter, 11/32" Across Flats, 0.216" Thickness, #8-32
(Pack of
100)
SKU:93864 Item#: 93864
• Serrations on washer face provide positive locking action
For use with Quali-Torq® Thread Rolling Screws
Couldn't load pickup availability
Catalog page#: 5-21
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 3/8-16
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Serrated Flange Hex Nut
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
• Serrations on washer face provide positive locking actionFor use with Quali-Torq® Thread Rolling Screws
Technical Specifications
| Item#: | 93864 |
|---|---|
| Diameter | #8 |
| Thread Pitch | 32 |
| Grade | 2 |
| Finish | Bright Zinc |
| Type | Serrated Flange Lock Nut |
| Material | Carbon Steel |
| Thickness | 0.216 " |
| Across Flats | 11/32 " |
| Thread | Coarse |
| Quantity Per Package | 100.0000 |
| Flange Diameter | 0.460 " |
| UNSPSC #: | 31161712 |
| TAA Compliant: | No |
| Weight: | 0.5 lb |
