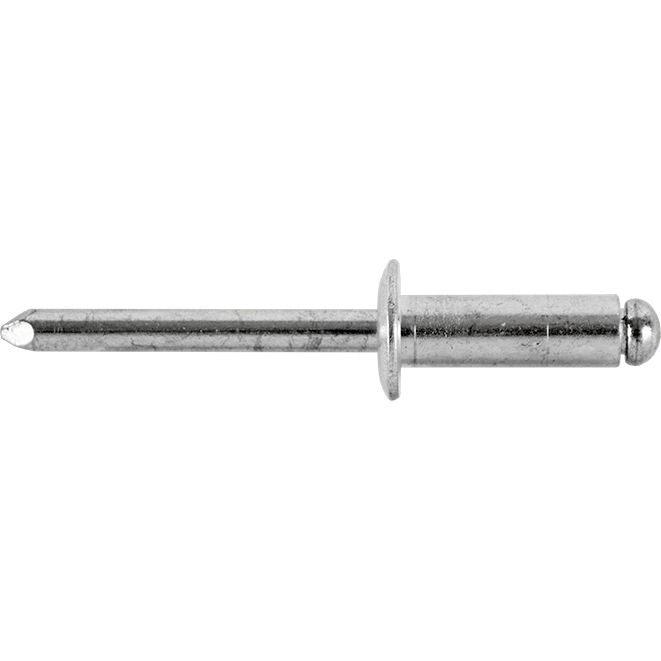

Open End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/4" Diameter, 0.376 to 0.5" Grip Range, 0.75" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
Hex Nut Grade 5 Steel 5/16-18
Item#: FA95678
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Item#: 88449
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Item#: A106
Couldn't load pickup availability
Open End Rivet Large Flange Head Steel 3/16"
Item#: 82348
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Item#: 82354
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Item#: 486
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Item#: 1543644
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Item#: 1962
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Item#: 90478
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Item#: 53980
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: 88436
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 85109 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 88 |
| Hole Size | 0.257 – 0.261 " |
| Drill Size | F |
| Head Diameter | 0.500 " |
| Head Height | 0.080 " |
| Body Length | 0.750 " |
| Shear Strength | 700 lb |
| Tensile Strength | 920 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
