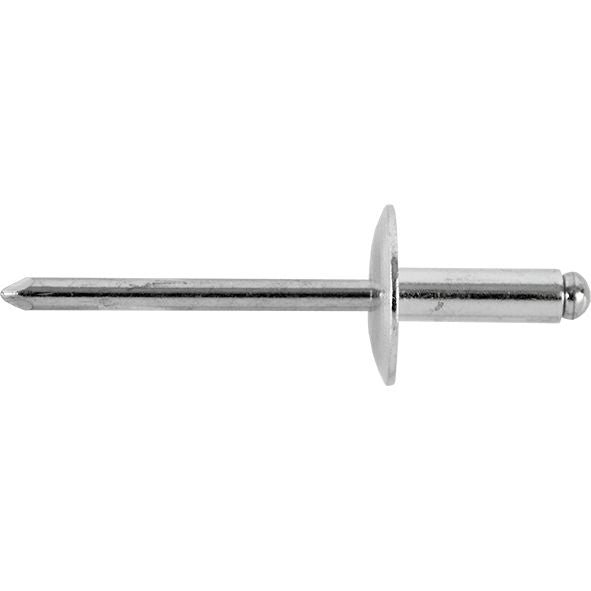

Open End Rivet, Large Flange Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.251 to 0.375" Grip Range, 0.575" Body Length
(Pack of
100)
Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Item#: 64348
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88445
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1950
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 483
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Item#: 488
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Item#: 1983
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Item#: 1984
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 1956
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: 88445
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
Large Flange• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 1962 |
|---|---|
| Type | Open End |
| Head Style | Large Flange |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.251 – 0.375 " |
| Industry Number | 66 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.625 " |
| Head Height | 0.092 " |
| Body Length | 0.575 " |
| Shear Strength | 380 lb |
| Tensile Strength | 500 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.8 lb |
Product Restrictions
