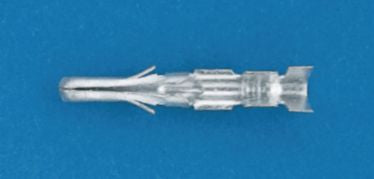

Pin Terminal 28 to 24 AWG
(Pack of
50.0)
• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Product Description
• Tin-plated brass terminals• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Technical Specifications
| Item#: | 1145866 |
|---|---|
| Type | Pin |
| Wire Gauge | 30-24 AWG |
| Maximum Voltage | 250 V |
| Approvals | UL recognized File No. E-29179 and CSA certified, File No. LR-19980 |
| Description | Pin 30 to 24 Gauge |
| Style | Pin and Socket Power Connector Terminals |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.04 lb |
