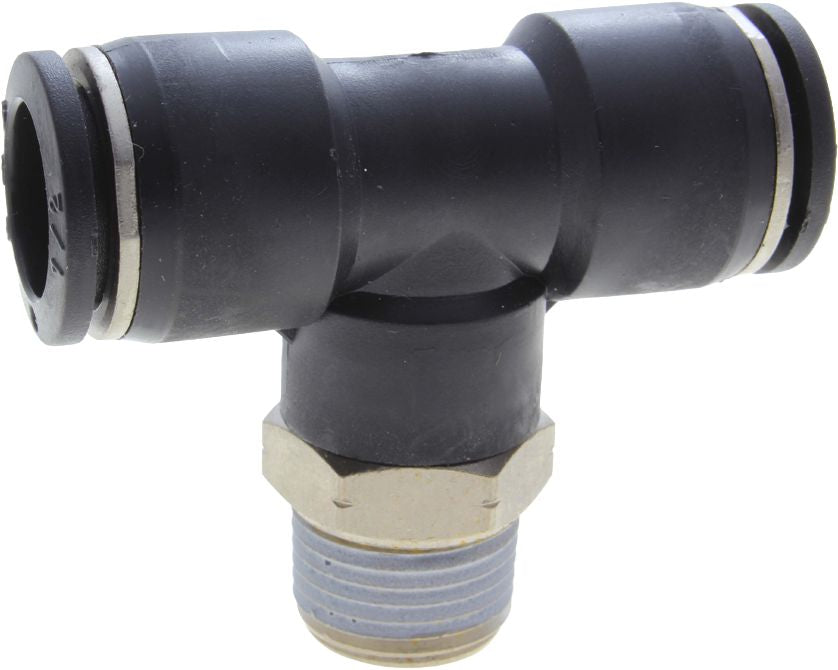

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4", Tube x Tube x Male NPT, 150 PSI Working Pressure
(Pack of 2)

Item#: 86769

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

Catalog page#: 9-31

Frequently Bought Together

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 62199
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 10 x 12mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/16" x 10mm

Item#: 56075
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"

Item#: 55739
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"

Item#: 86756
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"

Item#: 86777
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"

Item#: 86768
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm

Item#: 17940
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 10 x10mm x 3/8"

Item#: 54361
Push-to-Connect Union Tee, Nickel-Plated Brass, 6 x 6 x 6mm, Tube x Tube x Tube, 280 PSI Working Pressure

Push-to-Connect Union Tee, Nickel-Plated Brass, 6 x 6 x 6mm

Item#: 1198576
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86781
Square Head Plug Malleable Iron Black 1-1/4-11-1/2, Square Head Plug, Malleable Iron, Black, Schedule 40, 1-1/4-11-1/2

Square Head Plug Steel Black 1/4-18

Item#: 8675
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27

Item#: 5312
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610
Crimp-On Hose Coupling 5/8

Crimp-On Hose Coupling 3/8" x 9/16-18

Item#: 88360KH
Super 77 Hose Clamps 300 Series Stainless Steel bands with 305 Series Stainless Steel Screw Size # 76 2-1/4-5-3/16 x 1/2

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 62199
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm

Item#: 54388
Push-to-Connect Straight Union, Nickel-Plated Brass, 3/8 x 3/8

Push-to-Connect Straight Union, Nickel-Plated Brass, 3/8 x 3/8"

Item#: 28327
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 86769
Configuration Male Branch Tee
Tube Size 3/8 "
Thread Size 1/4 "
Thread Style NPT
Material Nickel-Plated Brass/PBT Resin
Wrench Size 15 mm
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.1 lb
