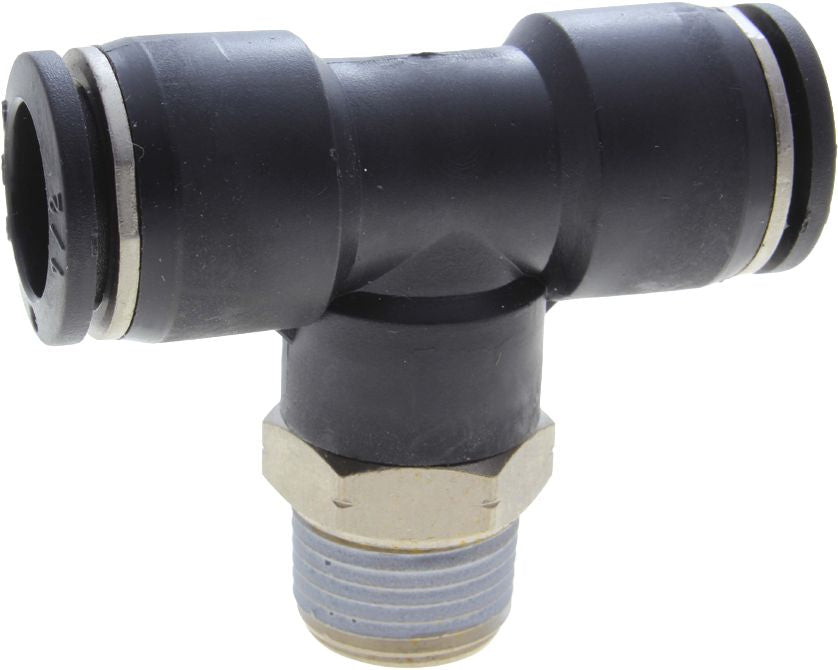

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32" x 10-32, Tube x Tube x Male UNF, 150 PSI Working Pressure
(Pack of 3)

Item#: 54424

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

Catalog page#: 9-31

Frequently Bought Together

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 1/8

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 5/32"

Item#: 54435
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm

Item#: 54375
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86791
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"

Item#: 86793
Brass male pipe push-on elbow fitting, Male brass push-on 90 degree elbow rigid 1/4 inch x 1/8 inch MPT fitting

Push-to-Connect Elbow, Nickel-Plated Brass, 1/8 x 5/16"

Item#: DY41726952
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8 x 1/8

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8 x 1/8"

Item#: 62220
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/4"

Item#: 98207
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 5/16

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 5/16"

Item#: 87642
Push-to-Connect Union Tee, Polyoxymethlene, 3/8

Push-to-Connect Union Tee, Polyoxymethlene, 3/8" Tube

Item#: 1593526
Pipe Hex Nipple Brass 1/2-14 x 1/4-18, Pipe Hex Nipple, Brass, 1/2-14 x 1/4-18, Male NPT x Male NPT, 1200PSI

Pipe Hex Nipple Brass 1/4-18 x 1/4-18

Item#: 5293
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27, Pipe Street Elbow, Brass, 90°, 1/8-27 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18

Item#: 5316
Forged Body Ball Valve Brass 2 x 2

Forged Body Ball Valve Brass 1/2-14 x 1/2-14

Item#: 63136
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 1/2-14 Male NPT

Item#: 5365
DOT Union Nylon 3/8 x 3/8

DOT Union Nylon 3/8 x 3/8"

Item#: 91820
DOT Connector Male Brass 3/8 x 3/8-18, DOT Air Brake Push to Connect Connector, Male, Brass, 3/8 x 3/8-18, Tube x Pipe

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506
Nylon Hose Guard 0.91

Nylon Hose Guard 1.06" ID x 25' Length

Item#: 96562
Nylon Hose Guard 0.91

Nylon Hose Guard 1.42" ID x 25' Length

Item#: 96563
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"

Item#: 86786
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 54424
Configuration Male Branch Tee
Tube Size 5/32" (4mm)
Thread Size 10-32 "
Thread Style UNF
Material Nickel-Plated Brass/PBT Resin
Wrench Size 8 mm
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.03 lb
