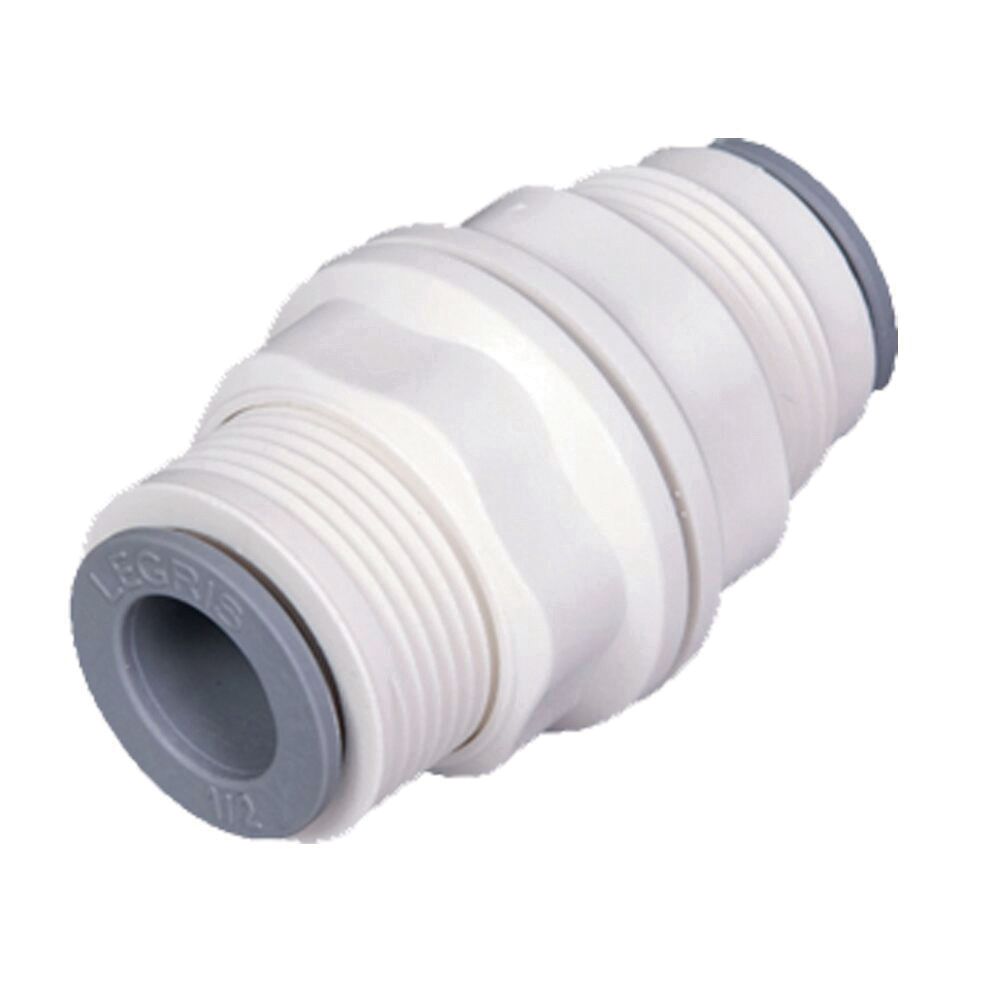

Push-to-Connect Bulkhead Union, Polyoxymethlene, 1/2 x 1/2", Tube x Tube, 232 PSI Working Pressure
(Pack of
5)
SKU:1262232 Item#: 1262232
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Frequently Bought Together
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1262232 |
|---|---|
| Configuration | Bulkhead Union |
| Tube Size | 1/2 " |
| Material | Polyoxymethlene |
| Wrench Size | 1.41 " |
| Panel Hole Diameter | 1.00 " |
| Panel Thickness | .81 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
