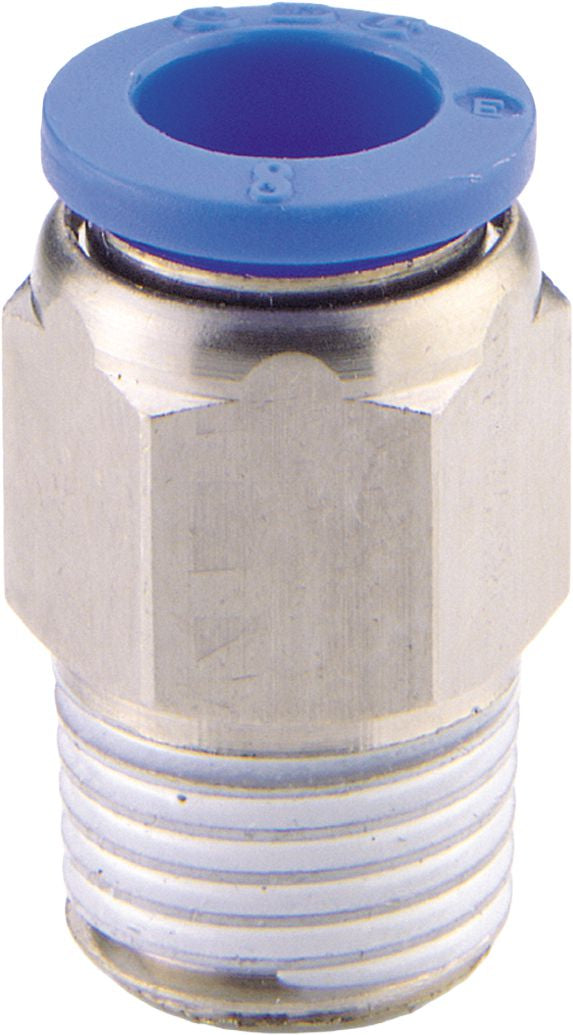

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2", Tube x Male NPT, 150 PSI Working Pressure
(Pack of 3)

SKU:86755 Item#: 86755

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Quantity

Catalog page#: 9-29

Frequently Bought Together

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"

Square Head Plug Steel Black 1/4-18

Pipe Nipple Brass 1/4-18 x 1/4-18

Pipe Hex Nipple Brass 1/8-27 x 1/8-27

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Pipe Coupling Brass 1/2-14 x 1/2-14

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32" x M5

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Self-Drilling Screw Hex Head #10-16 x 3/4"

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	86755
Configuration	Male Connector
Tube Size	1/2 "
Thread Size	1/2 "
Thread Style	NPT
Material	Nickel-Plated Brass/PBT Resin
Wrench Size	22 mm
Internal Hex Size	.28 "
Working Pressure	150 PSI
Temperature Range	32 to 140 °F
UNSPSC #:	40183100
TAA Compliant:	Yes
Weight:	0.43 lb
