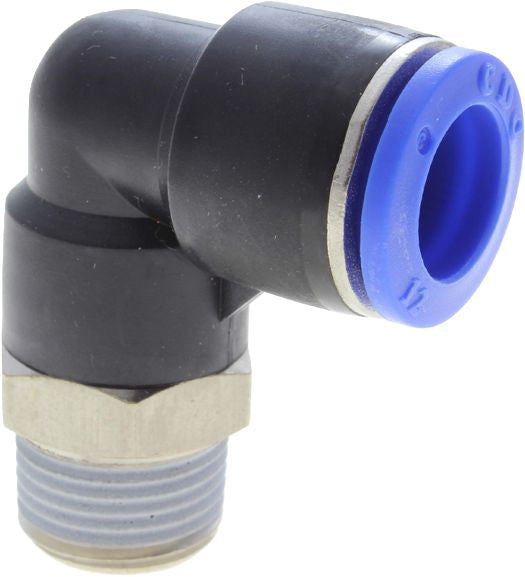

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:62204 Item#: 62204
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32" x M5
Couldn't load pickup availability
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"
Couldn't load pickup availability
Square Head Plug Steel Black 1/4-18
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Hex Bushing Malleable Iron 1-11-1/2 x 3/4-14
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Copper Soft Annealed Tubing 3/8" OD x 25'
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 62204 |
|---|---|
| Configuration | Male Elbow |
| Tube Size | 3/8 " |
| Thread Size | 1/2 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 22 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
