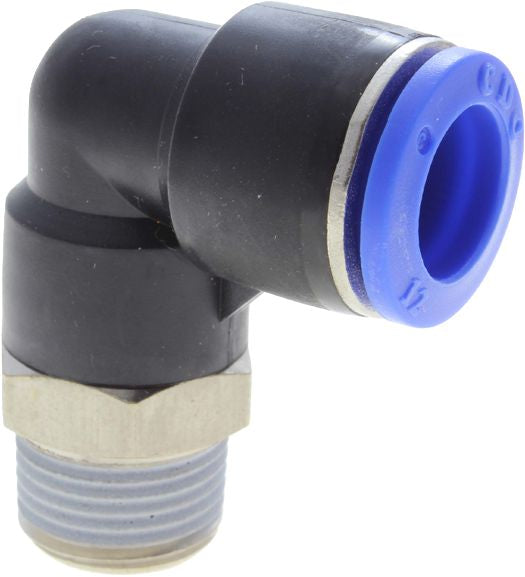

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32" (4mm) x M5-0.8, Tube x Male BSPP, 150 PSI Working Pressure
(Pack of
5)
SKU:17903 Item#: 17903
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections
Frequently Bought Together
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm
Couldn't load pickup availability
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
Square Head Plug Malleable Iron Black 1/2-14
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 1/2-14
Couldn't load pickup availability
Hose Clamp 304 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm
Couldn't load pickup availability
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections
Technical Specifications
| Item#: | 17903 |
|---|---|
| Configuration | Male Elbow |
| Tube Size | 4mm (5/32") |
| Thread Size | M5x0.8 |
| Thread Style | Metric |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 8 mm |
| Thread Length | 3.5 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.035 lb |
