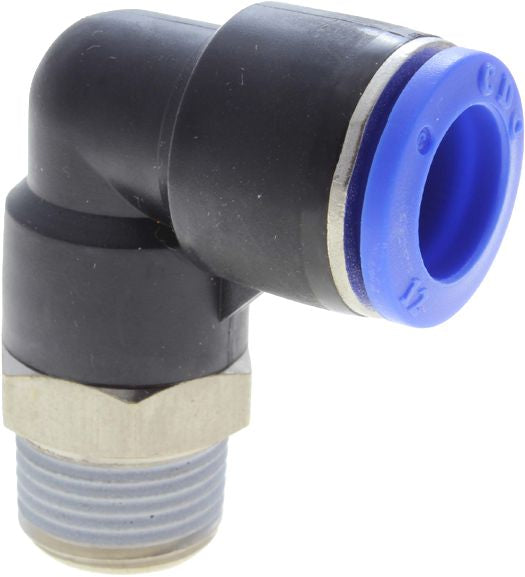

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8", Tube x Male BSPT, 150 PSI Working Pressure
(Pack of 5)

Item#: 98201

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

Catalog page#: 9-30

Frequently Bought Together

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5, Miniature Meter Out Flow Control Regulator

Miniature Meter Out Flow Control Regulator

Item#: 1593569
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 98194
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/16 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/16 x 1/8"

Item#: 87619
Push-to-Connect Elbow, 316 Stainless Steel, 1/4 x 1/4

Push-to-Connect Elbow, 316 Stainless Steel, 1/4 x 1/4"

Item#: 1197173
Push-to-Connect Elbow, Nickel-Plated Brass, 1/4 x 1/4

Push-to-Connect Elbow, Nickel-Plated Brass, 1/4 x 1/4"

Item#: 28296
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/4

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"

Item#: 17926
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87622
Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 62208
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86760
Merchant Coupling Steel 3/8-18 x 3/8-18, Merchant Coupling, Steel, Black, Schedule 40, 3/8-18 x 3/8-18

Merchant Coupling Steel 1/2-14 x 1/2-14

Item#: 8638
Merchant Coupling Steel 3/8-18 x 3/8-18, Merchant Coupling, Steel, Black, Schedule 40, 3/8-18 x 3/8-18

Merchant Coupling Steel 1/4-18 x 1/4-18

Item#: 8636
Pipe Adapter Brass 1/4-18 x 3/8-18, Pipe Adapter, Brass, 1/4-18 x 3/8-18, Male NPT x Female NPT, 1200PSI

Pipe Adapter Brass 1/8-27 x 1/4-18

Item#: 5279
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Crimp-On Hose Coupling 5/8

Crimp-On Hose Coupling 1/2" x 3/4-16

Item#: 88364KH
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Item#: 88719
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4"

Item#: 54338
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 98202
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 98194
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 98201
Configuration Male Elbow
Tube Size 6 mm
Thread Size R1/8 "
Thread Style BSPT
Material Nickel-Plated Brass/PBT Resin
Wrench Size 10 mm
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.12 lb
