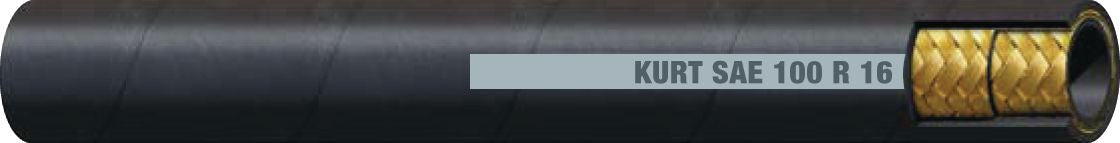

SAE R16S Hydraulic Hose, Rubber, 2-Steel Braided, 5/8" ID, 0.94" OD, 50' Length, 4" Bend Radius, 3500PSI
(Pack of
50)
SKU:1562955 Item#: 1562955
• Agency Ratings: SAE 100R16S
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Couldn't load pickup availability
Catalog page#: 8-54
Frequently Bought Together
EC215 Winner Hydraulic Hose Rubber 0.82" x 50'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/8" x 50'
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/8" x 50'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 15/16" x 50'
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16S• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562955 |
|---|---|
| Manufacturer Model #: | R16S-10 (50) |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R16S |
| Industry Rating 2 | MSHA |
| Manufacturer Series Number | SAE R16S |
| Manufacturer Series Name | Kurt |
| I.D. | 5/8 (-10) " |
| Hose O.D. | 0.94 " |
| Working Pressure | 3,500 PSI |
| Burst Pressure | 14,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 21.0 lb |
