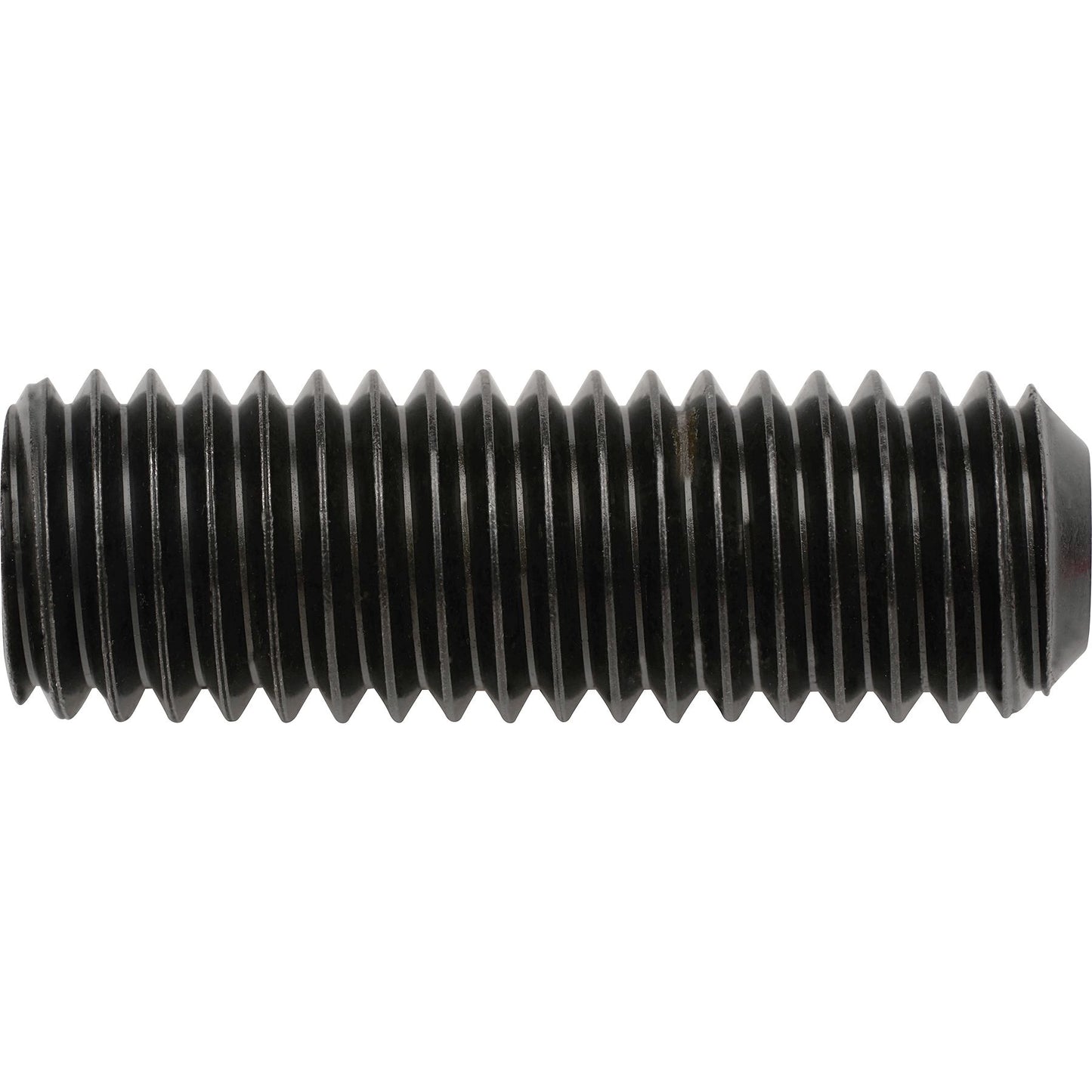

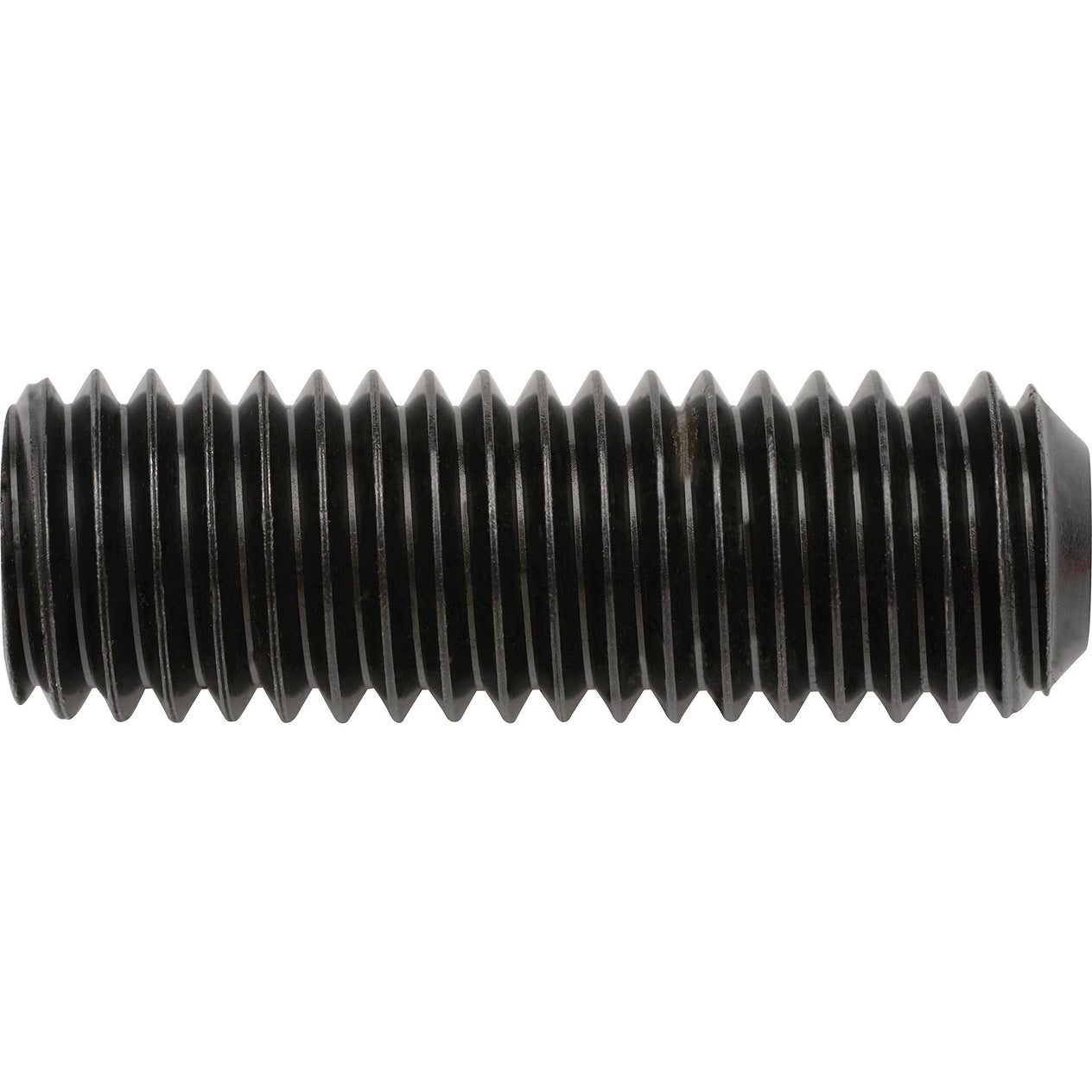

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Coarse Thread, 1/4" Hex Key, 1/2-13 x 1-1/2"
(Pack of
25)
SKU:86013 Item#: 86013
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Set Screw Knurled Point Steel #10-24 x 1/4"
Couldn't load pickup availability
Set Screw Cup Point Steel M12-1.75 x 30mm
Couldn't load pickup availability
Set Screw Knurled Point Steel 1/4-20 x 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 40mm
Couldn't load pickup availability
Flat Head Socket Cap Screw SS 1/4-20 x 1"
Couldn't load pickup availability
Button Head Socket Cap Screw SS 1/4-20 x 3/4"
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 86013 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 13 |
| Length | 1-1/2 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Coarse |
| Head Style | Socket Head |
| Key Size | 1/4 " |
| Size | 1/2-13X1-1/2 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | No |
| Weight: | 1.52 lb |
