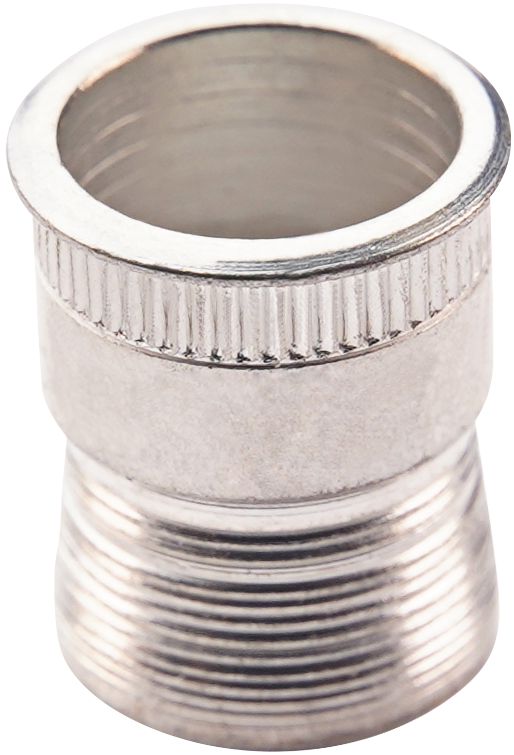

Standard Threaded Insert #10-24
(Pack of
50.0)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Standard Threaded Insert M8-1.25
Couldn't load pickup availability
Standard Threaded Insert M6-1
Couldn't load pickup availability
6-32x5/16 Blind Cert
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
Couldn't load pickup availability
Diamond Grip II Installation Kit 3/8-16
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 81086 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 0.2812 " |
| Pilot Drill Size | 9/32 " |
| Pilot Drill Number | 84735 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.306 " |
| Body Diameter | 0.2805 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
