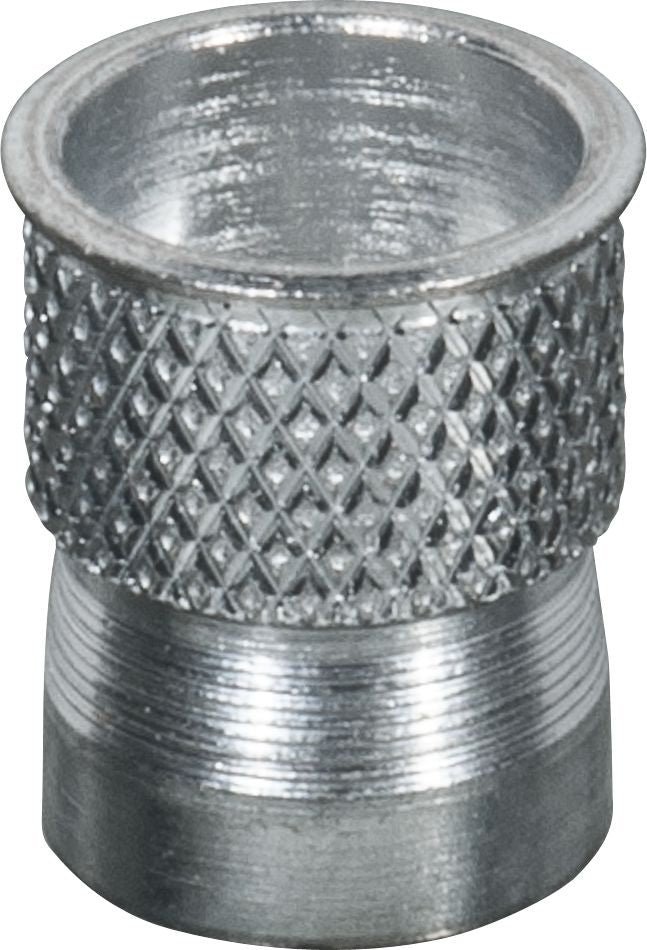

Threaded Insert for Soft Material 1/4-20
(Pack of
25.0)
• CAD-plated
• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Standard Threaded Insert M10-1.5
Couldn't load pickup availability
Standard Threaded Insert #4-40
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Standard Threaded Insert 3/8-16
Couldn't load pickup availability
Product Description
• CAD-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95974 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.391 " |
| Pilot Drill Size | 25/64 " |
| Pilot Drill Number | 84742 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.415 " |
| Body Diameter | 0.389 " |
| Length | 0.515 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.1764 lb |
