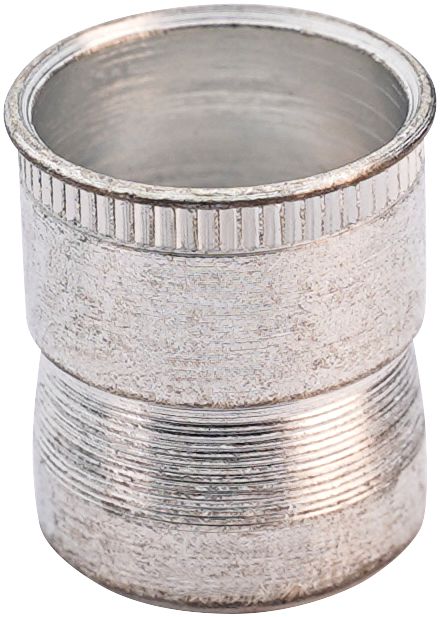

Standard Threaded Insert M8-1.25
(Pack of
25)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Hex Nut Grade 8 Steel 5/8-11
Item#: FA68406
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Item#: 84733
Couldn't load pickup availability
Standard Threaded Insert M6-1
Item#: 85897
Couldn't load pickup availability
Threaded Insert for Soft Material 5/16-18
Item#: 95976
Couldn't load pickup availability
Threaded Insert for Soft Material #10-32
Item#: 95973
Couldn't load pickup availability
Standard Threaded Insert #4-40
Item#: 81083
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85898 |
|---|---|
| Diameter | M8 |
| Thread Pitch | 1.25 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 12.70 mm |
| Pilot Drill Size | 1/2 " |
| Pilot Drill Number | 84749 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 13.41 mm |
| Body Diameter | 12.69 mm |
| Length | 15.62 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
