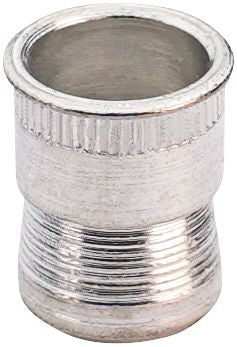

Standard Threaded Insert M5-0.8
(Pack of
25.0)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #12-14 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
1/4-20 0-3/16 Grip Cert
Couldn't load pickup availability
1/4-20x1/2 Blind Cert
Couldn't load pickup availability
10-32x3/8 Blind Cert
Couldn't load pickup availability
Conversion Kit M5-0.8
Couldn't load pickup availability
Conversion Kit M8-1.25
Couldn't load pickup availability
Conversion Kit M6-1
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85896 |
|---|---|
| Diameter | M5 |
| Thread Pitch | 0.8 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 7.14 mm |
| Pilot Drill Size | 9/32 " |
| Pilot Drill Number | 84735 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 7.77 mm |
| Body Diameter | 7.12 mm |
| Length | 9.40 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
