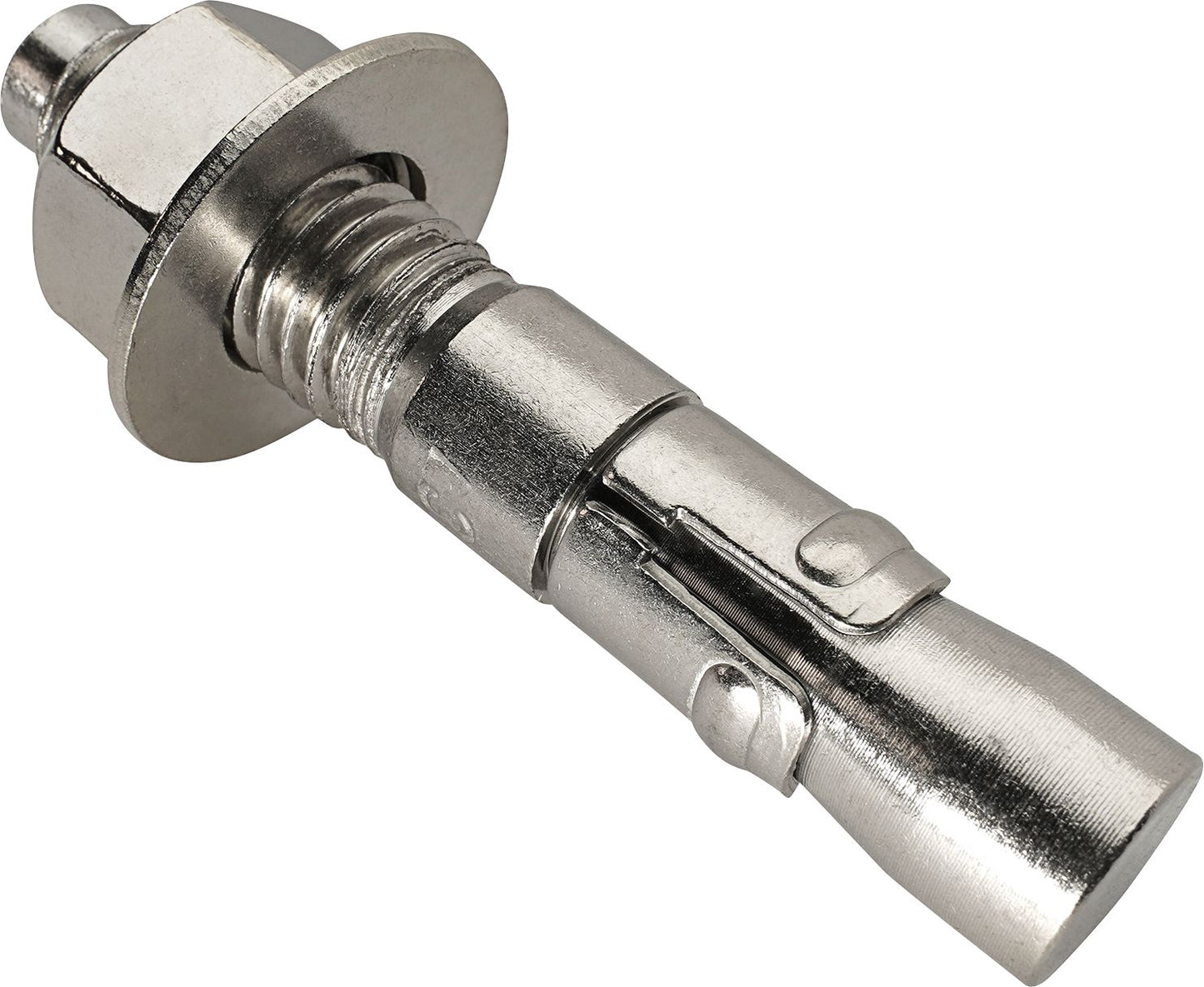

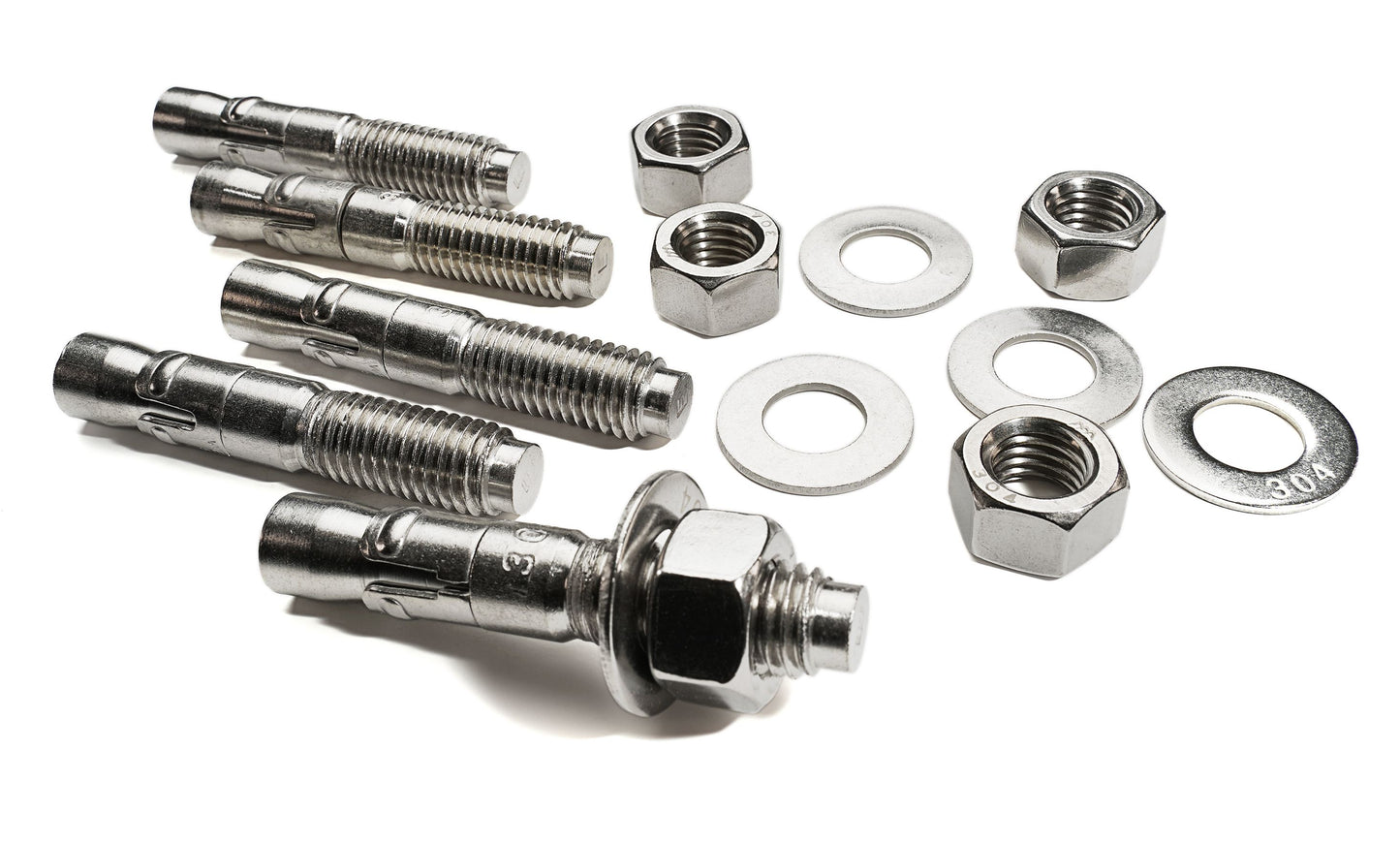

Wedge Type Stud Bolt Anchor SS 5/8 x 3-1/2"
(Pack of
5.0)
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
SNAPTOGGLE® Toggle Bolt Anchor 1/4-20
Couldn't load pickup availability
Conical Screw Anchor Plastic #8 to #10 x 7/8"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #10-24 x 3"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 3/8 x 2-1/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 3-3/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 4-1/4"
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91633 |
|---|---|
| Diameter | 5/8 " |
| Length | 3-1/2 " |
| Thread Length | 1-1/2 " |
| Drill Size | 5/8 " |
| Material | Stainless Steel |
| Finish | Plain |
| Type | Wedge Anchor |
| Proof Test Load | 4,800 lb |

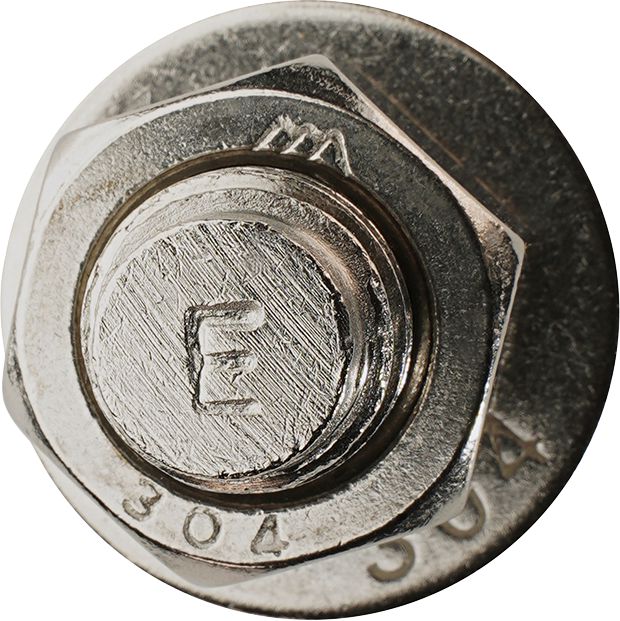

| Length Identification Code | D |
| Size | 5/8X3-1/2 " |
| Minimum Embedment | 2-5/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 1.89 lb |
Product Restrictions
