Wire Rope Terminal, Marine Eye End, 3/16", Stainless Steel
(Pack of
2)
SKU:1440207 Item#: 1440207
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.
• 316 Stainless Steel
Frequently Bought Together
Wire Rope Terminal, Eye End, 3/32", Stainless Steel
Item#: 1440336
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 9/32", Stainless Steel
Item#: 1440326
Couldn't load pickup availability
Wire Rope Terminal, Marine Eye End, 3/32", Stainless Steel
Item#: 1440330
Couldn't load pickup availability
Wire Rope Terminal, Single Shank Ball, 3/16", Stainless Steel
Item#: 1440190
Couldn't load pickup availability
Wire Rope Terminal, Single Shank Ball, 1/8", Stainless Steel
Item#: 1440272
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Item#: 1440393
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Item#: 85372
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 24" Long
Item#: 99562
Couldn't load pickup availability
Wire Rope Sleeve, 1/16", Copper, Zinc Plated
Item#: 1440298
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Item#: DY89320050
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Item#: 87510
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Item#: 1439690
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/8", 2,000 lbs Breaking Strength
Item#: 1439209
Couldn't load pickup availability
Wire Rope Clip, Forged, Galvanized, 1/8"
Item#: 1442409
Couldn't load pickup availability
Product Description
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.• 316 Stainless Steel

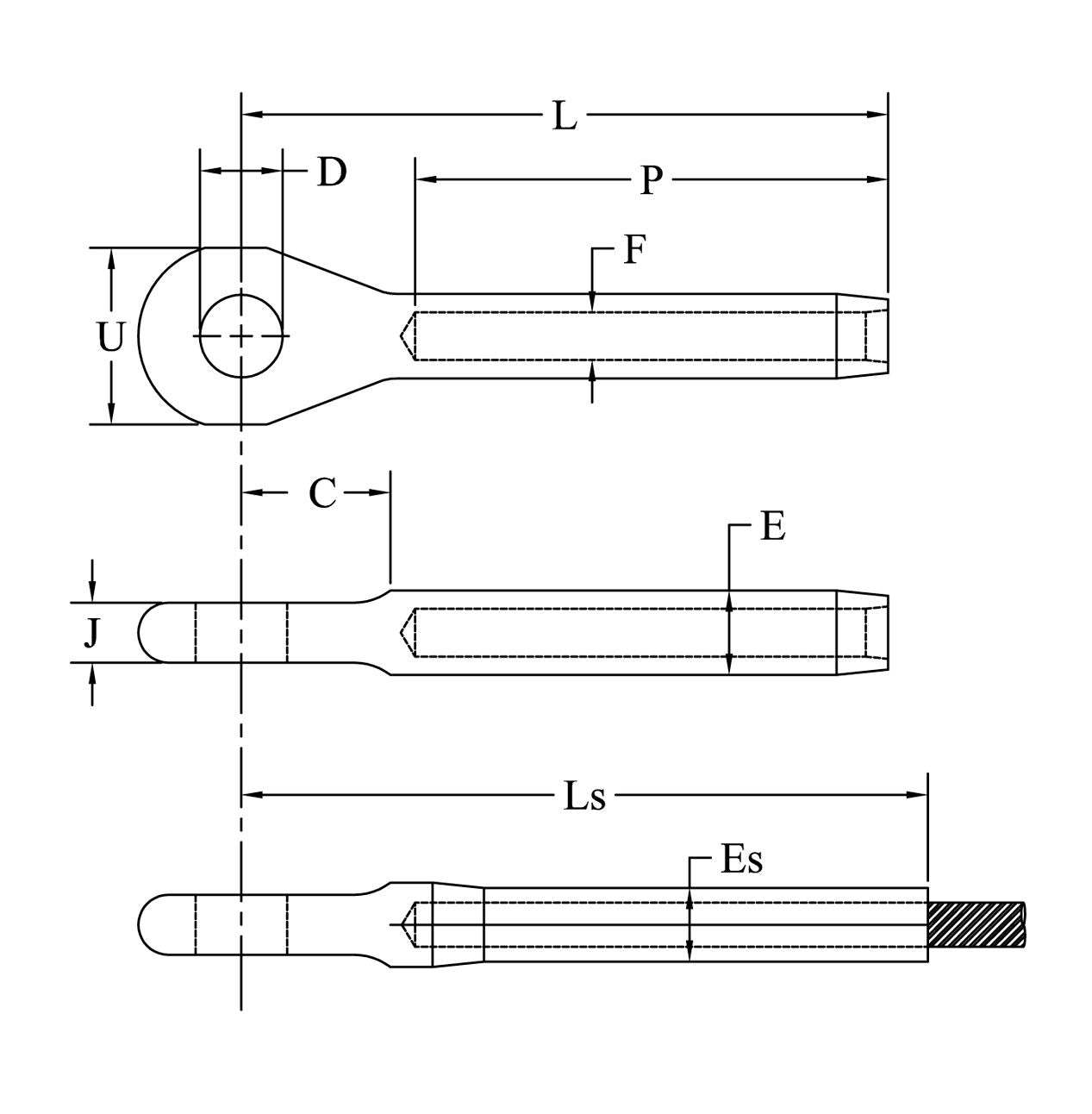

Technical Specifications
| Item#: | 1440207 |
|---|---|
| Type | Marine Eye End |
| Cable Diameter | 3/16 " |
| Material | Stainless Steel |
| C | 0.710 " |
| D | 0.389 " |
| E | 0.359 " |
| Es | 0.313 " |
| F | 0.203 " |
| J | 0.359 " |
| L | 2.750 " |
| Ls | 3.147 " |
| P | 2.000 " |
| U | 0.875 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
