Wire Rope Terminal, Eye End, 3/32", Stainless Steel
(Pack of
2)
• Stainless Steel
• Meets MIL-DTL-781
Frequently Bought Together
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Item#: 1440393
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Item#: 1440301
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/16", Stainless Steel
Item#: 1440231
Couldn't load pickup availability
Wire Rope Terminal, Stud, 5/32", 1/4-28 Right Hand Thread, Stainless S
Item#: 1440349
Couldn't load pickup availability
Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Item#: 1440287
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Item#: 1440301
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 4' Length
Item#: 1412714
Couldn't load pickup availability
Eye Bolts, Machinery, 1/2 x 1-1/2"
Item#: 85519
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 1/8"
Item#: 1442156
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88446
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Item#: 88441
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Item#: 84931
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/8", 14,400 lbs Breaking Strength
Item#: 1439596
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Item#: 1439334
Couldn't load pickup availability
Wire Rope Uncoated 3200 Lb Safe Load 7/16" x 100'
Item#: 64287
Couldn't load pickup availability
Product Description
• Stainless Steel• Meets MIL-DTL-781

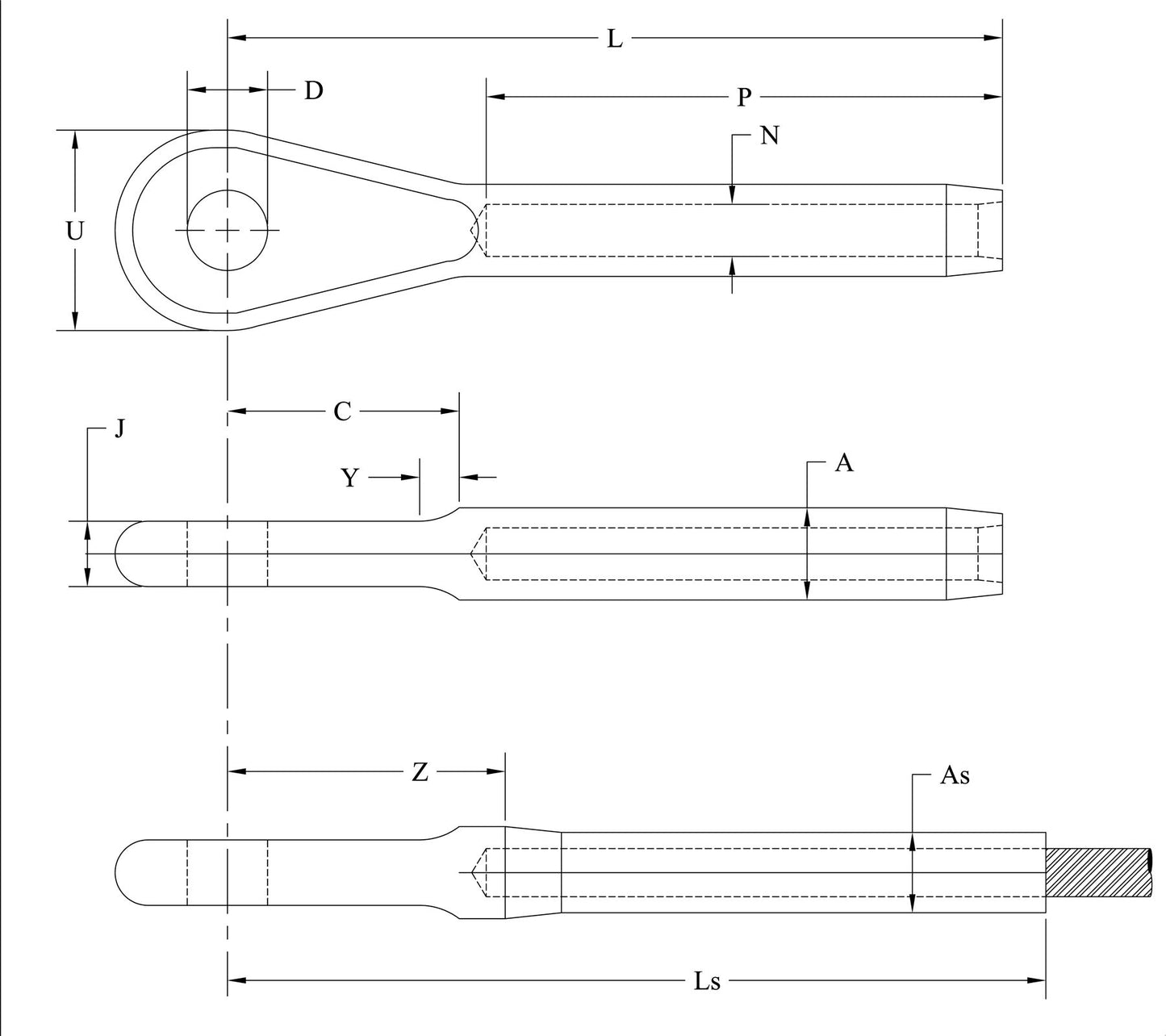

Technical Specifications
| Item#: | 1440336 |
|---|---|
| Type | Eye End |
| Cable Diameter | 3/32 " |
| Material | Stainless Steel |
| A | 0.218 " |
| As | 0.190 (+0.000 -0.005) " |
| C | 0.707 " |
| D | 0.190 " |
| J | 0.103 " |
| L | 2.043 " |
| Ls | 2.160 " |
| N | 0.109 " |
| P | 1.261 " |
| U | 0.438 " |
| Y | 0.092 " |
| Z | 0.856 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
Product Restrictions
