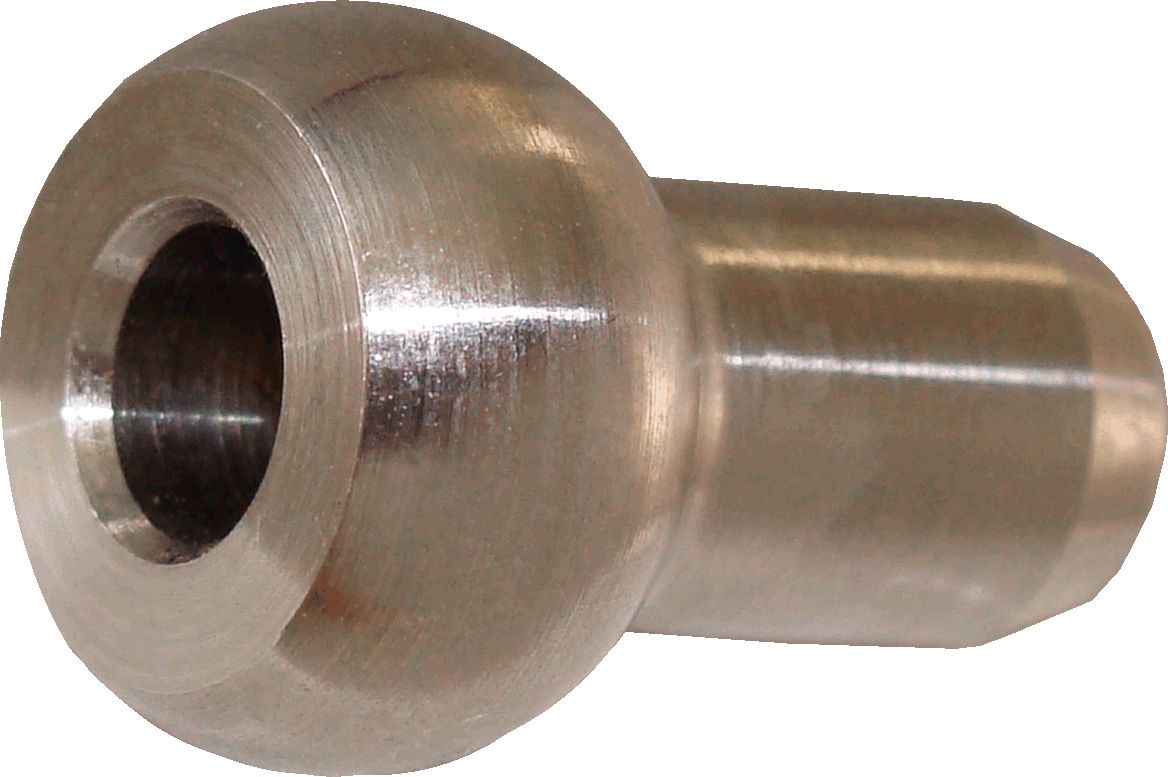

Wire Rope Terminal, Single Shank Ball, 1/8", Stainless Steel
(Pack of
5)
SKU:1440272 Item#: 1440272
Single Shank Ball end fittings will exceed the minimum breaking strength of the cable on to which it is swaged.
• Stainless Steel
• Meets MIL-DTL-781
Couldn't load pickup availability
Catalog page#: 15-43
Frequently Bought Together
Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Plain Ball, 3/32", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Single Shank Ball, 1/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/32", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Marine Eye End, 3/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Stud, 5/16", 1/2-20 Left Hand Thread, Stainless St
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 3/16"
Couldn't load pickup availability
Wire Rope Sleeve, 3/32", Aluminum
Couldn't load pickup availability
Grade 43 Clevis Grab Hook, 3/8", 5,400 lb WLL
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Wire Rope Sleeve, 1/4", Aluminum
Couldn't load pickup availability
Wire Rope Clip 1"
Couldn't load pickup availability
Wire Rope Stop Sleeve, 1/8", Copper
Couldn't load pickup availability
Product Description
Single Shank Ball end fittings will exceed the minimum breaking strength of the cable on to which it is swaged.• Stainless Steel
• Meets MIL-DTL-781
Technical Specifications
| Item#: | 1440272 |
|---|---|
| Manufacturer Model #: | MS20664C4 |
| Type | Single Shank Ball |
| Cable Diameter | 1/8 " |
| Material | Stainless Steel |

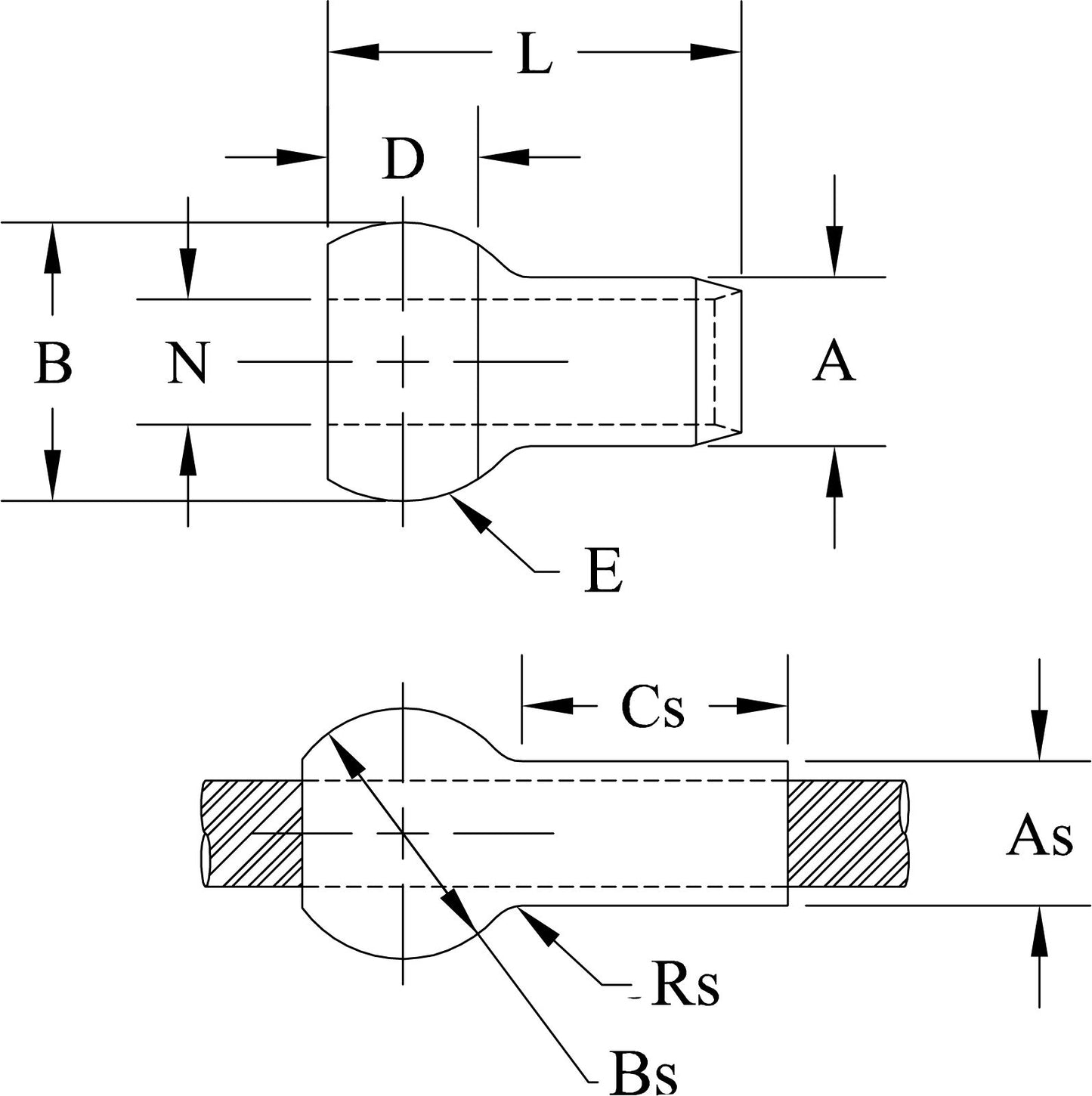

| A | 0.223 " |
| As | 0.190 " |
| B | 0.350 " |
| Bs | 0.315 " |
| Cs | 0.313 " |
| D | 0.1895 " |
| E | 0.137 " |
| L | 0.500 " |
| N | 0.139 " |
| Rs | 0.023 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
