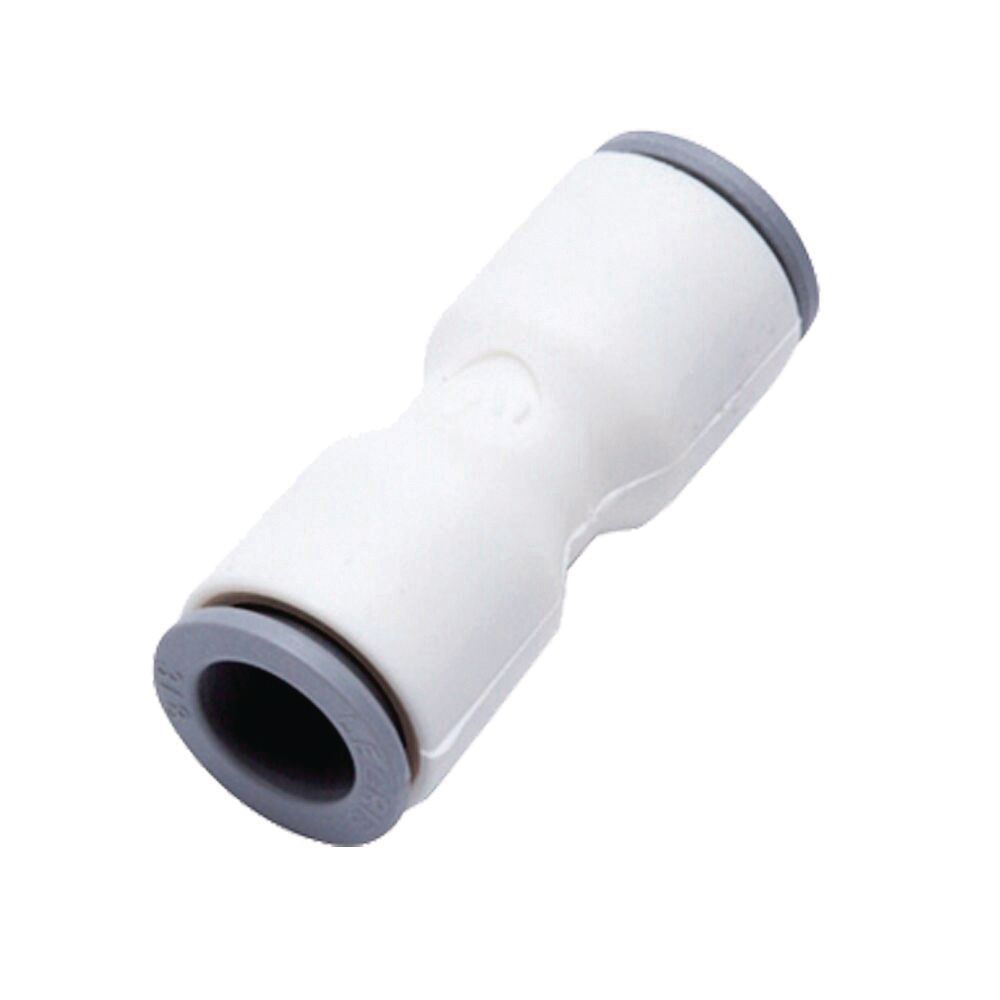

Connecteur d'union push-to-connect, polymère, 1/4 x 5/16 ", tube x tube, 230psi
(Paquet de
10)
SKU:1259889 Article#: 1259889
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Impossible de charger la disponibilité du service de retrait
Page du catalogue : 9-39
Fréquemment achetés ensemble
SAE FLAT WASHER À travers l'acier durci 5/8 "
Impossible de charger la disponibilité du service de retrait
Noix de noix hexagonale 8 acier en alliage 1 / 4-20
Impossible de charger la disponibilité du service de retrait
Rondelle plate Grade 12 à travers l'acier durci M10
Impossible de charger la disponibilité du service de retrait
Description du produit
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Spécifications techniques
| Article#: | 1259889 |
|---|---|
| No de modèle du fabricant : | 6306 56 08WP2 |
| Style | Limons |
| Configuration | Connecteur syndical |
| Taille de tube | 1/4 x 5/16 " |
| Matériel | Polymère d'ingénierie |
| Pression de travail | 230 psi |
| Plage de température | +35 à +200 ° F |
| UNSPSC #: | 40183100 |
| Conforme à la TAA : | Non |
