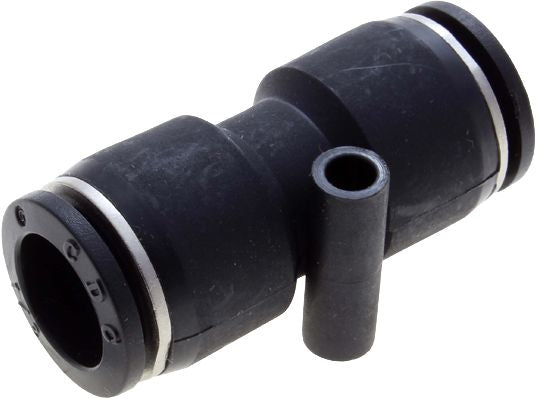

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

LF3000 Union push-to-connect, corps en nylon, 1/2 x 1/2 ", tube x tube, 290psi
(Paquet de 3)

SKU:86783 Article#: 86783

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Vérifier la disponibilité

Quantité

Page du catalogue : 9-32

Fréquemment achetés ensemble

Miniature Clamp SS 7/32 to 5/8

Cramp miniature SS 5/16 à 7/8 "

Article#: 86723

DOT Swivel Elbow Male 90° Brass 3/8 x 1/2-14, DOT Air Brake Push to Connect Swivel Elbow, 90°, Male, Brass, 3/8 x 1/2-14

Dot pivotant mâle 360 ° en laiton 3/8 x 1 / 4-18

Article#: 27205

DOT Connector Male Brass 3/8 x 3/8-18, DOT Air Brake Push to Connect Connector, Male, Brass, 3/8 x 3/8-18, Tube x Pipe

Connecteur de points Mâle mâle 1/4 x 1 / 4-18

Article#: 57505

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8

Connecteur push-to-connect en laiton 1/2 x 3/8 "

Article#: 54413

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm, Tube, 150 PSI Working Pressure

Nylon de fiche push-to-connect 6 mm

Article#: 54399

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8

Connecteur push-to-connect en laiton 5/32 x 1/8 "

Article#: 86749

Pipe Close Nipple Brass 1/8-27 x 1/8-27, Pipe Close Nipple, Brass, 1/8-27 x 1/8-27, Male NPT x Male NPT, 3/4

Pipe Close Minpple Laiton 3/8-18 x 3/8-18

Forged Body Ball Valve Brass 2 x 2

Valve à billes de corps forgé en laiton 3/4 x 3/4 "

Article#: 63137

Square Head Plug Malleable Iron Black 1-1/4-11-1/2, Square Head Plug, Malleable Iron, Black, Schedule 40, 1-1/4-11-1/2

Bouet à tête carrée fer maletable noir 1 / 2-14

Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

Contre-écrou avec insert en nylon Grade 8 5 / 16-18

Article#: 53980

Cross-Over Socket Extension Set, 3/4

Ensemble d'extension de prise croisée, 3/8 ", 3 pièces

Article#: DY89320050

PTO Pin Lock 3/8 x 2-1/2

Lock POP PIN 1/4 x 2-1 / 2 "

Article#: 64348

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 16mm x 1/2

Connecteur push-to-connect en laiton 6 mm x m5

Article#: 17896

Nylon Hose Guard 0.91

Garde du tuyau en nylon 1.81 "id x 25 'longueur

Article#: 96564

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Connecteur push-to-connect en laiton 5/16 x 1/4 "

Article#: 87622

Description du produit

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Spécifications techniques

Article#:	86783
Style	LF3000
Configuration	Union
Taille de tube	1/2 "
Matériel	Corps en nylon
Pression de travail	290 psi
Plage de température	-4 à +175 ° F
UNSPSC #:	40183100
Conforme à la TAA :	Oui
Poids:	0.12 lb
