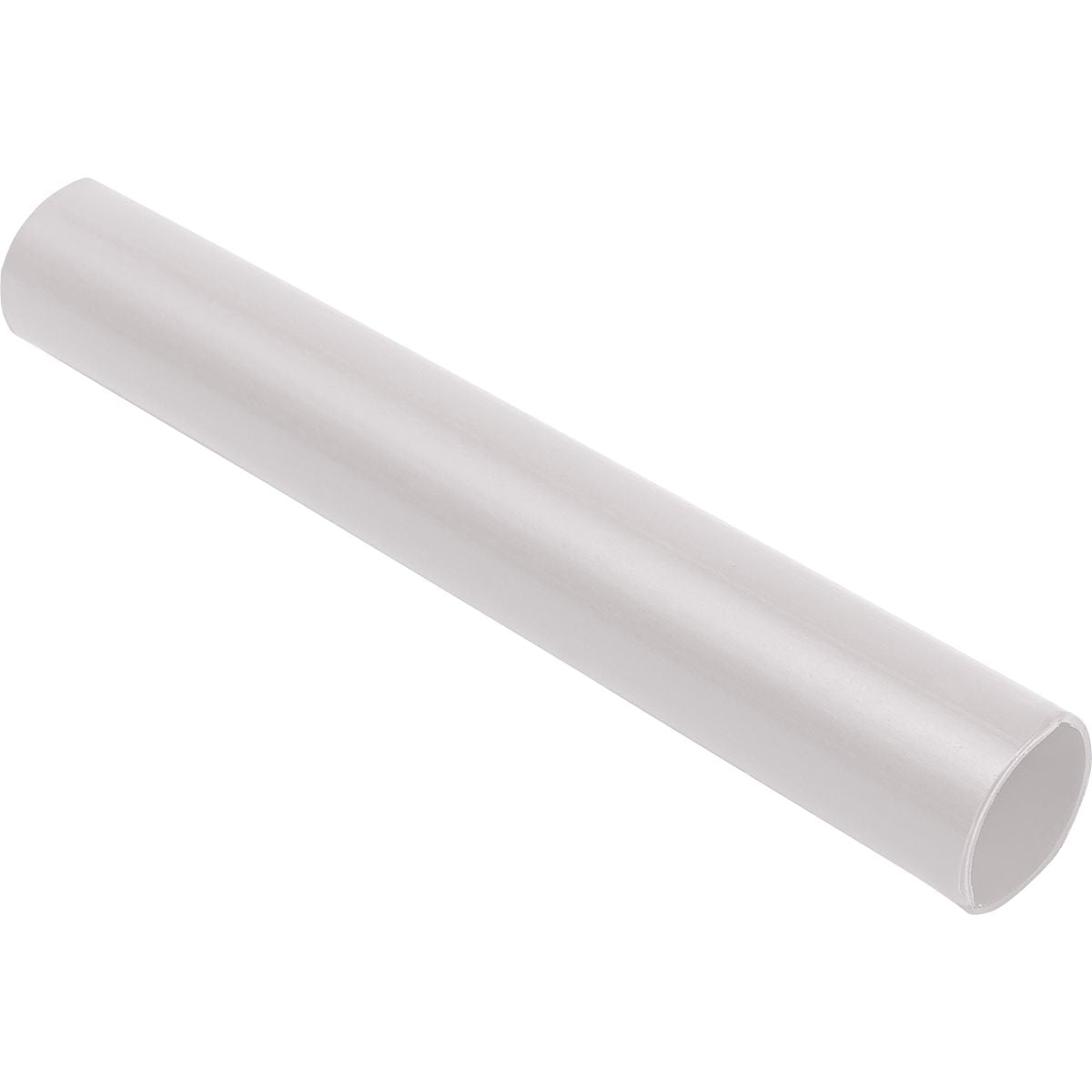

1/4 x 3"White Thermapod Heat Shrink Tube
(Pack of
10)
SKU:DY21871349 Item#: DY21871349
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Insulform Heat Shrink Tubing 6 to 2/0 AWG Black
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 4 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.413" ID 25'
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21871349 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 16-14 AWG |
| Diameter | 1/4 " |
| Length | 3 " |
| Color | White |
| I.D. Before Shrinkage | 0.25 " |
| I.D. After Shrinkage | 0.08 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing White 1/4 x 3" |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
