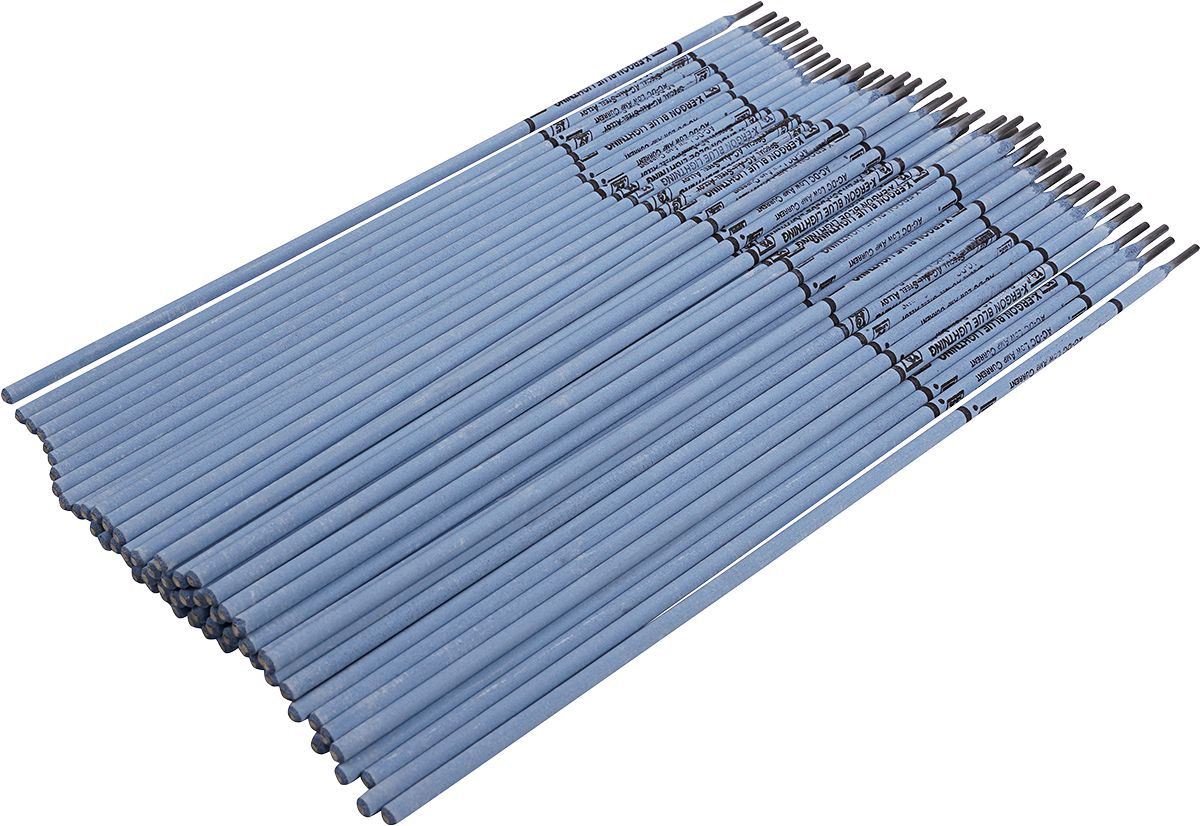

100 Blue Lightning Tough Duplex Alloy 5/32
(Pack of 5.0)

Lawson Products

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Frequently Bought Together

333 Dissimilar Steel TIG Wire 0.035"

X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/16

Item#: EG00420000

X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64

Item#: EG00495602

USS Flat Washer Thru-Hardened Steel 1/4"

Butt Connector 22 to 18 AWG Clear

Butt Connector 16 to 14 AWG Blue

Flat Soapstone 1/2"

Oxy Acetylene Fuel Gas Single Replacement Flint

333 Dissimilar Steel TIG Wire 1/16"

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300250

510 Aluminum TIG Wire 1/16"

Product Description

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10030000
Welding Process	Stick
Type	Electrode
Diameter	5/32 "
Tensile Strength	130,000 PSI
Elongation	30 %
Hardness	35 HRC
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.9 lb
