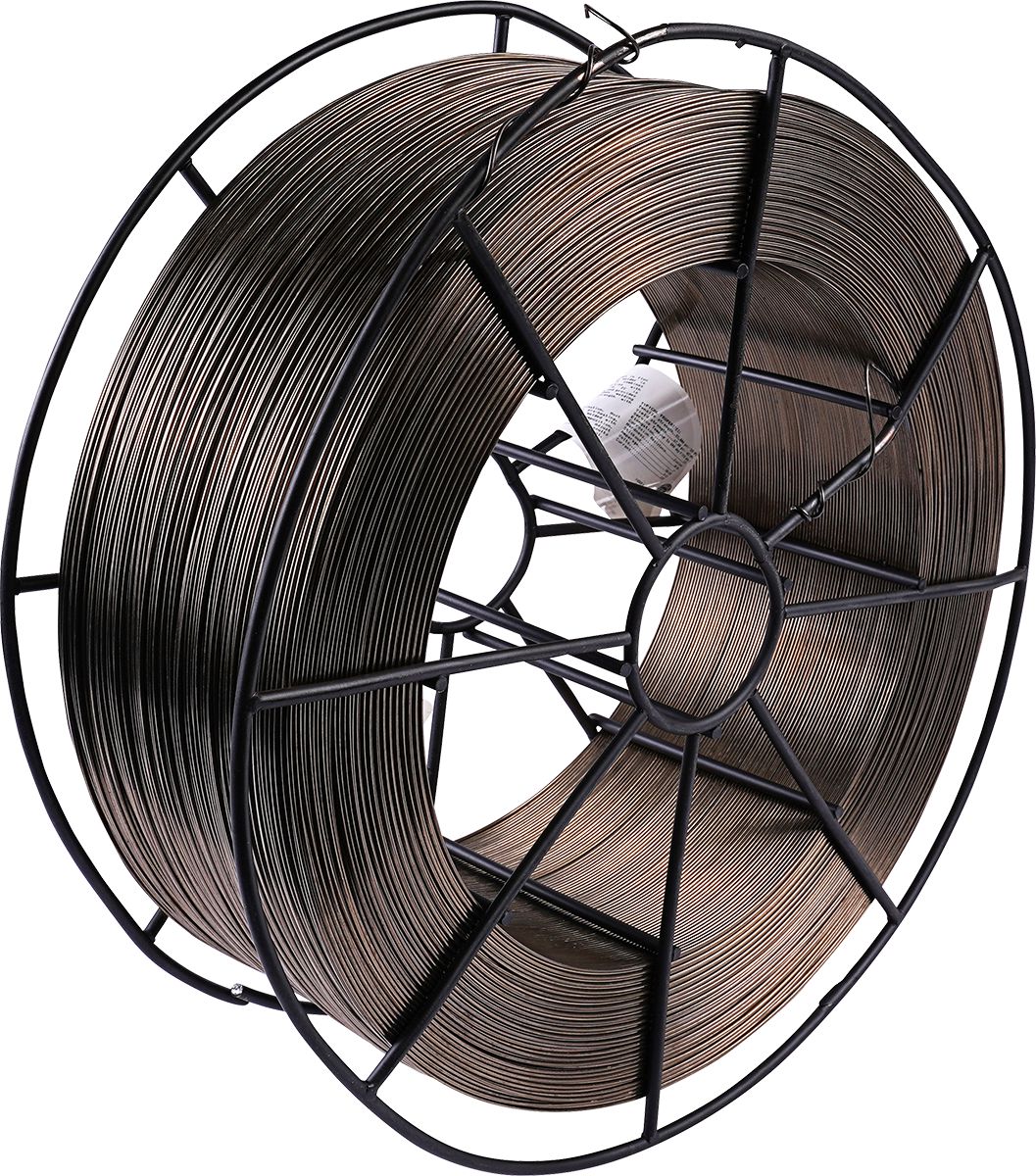

601 Xl Flux Core All Steel Mig Wire Duel Sheilded Flux Gas 100% Co2 Or 75%Ar 25%Co2 Elongation 25%Tensile 115000 Low Hydrogen Flux
(Pack of 33)

SKU:EG60180035 Item#: EG60180035

Lawson Products

• Designed for Welding All Steels – Manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior Welding Speed – Three times faster than stick welding and over 1-3/4 times faster than solid wires
• High Recovery Rate – Over 90% deposition efficiency, low heat input means less distortion and better tolerance control
• All-position self-lifting slag
• Tensile Strength: 95,000 PSI/655 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Service Temperature: Up to 600°F/316°C
• Elongation: 37%
• Corrosion Resistance: Excellent
• Hardness: 90Rb
• Current: DCEP (DC+)
• Gas: 75% Ar/25% CO2; or 100% CO2

Check Availability

Quantity

Catalog page#: LE-130

Frequently Bought Together

100 Blue Lightning Tough Duplex Alloy 3/32

Item#: EG10050000

X-Tractalloy Welding Electrode Non-Conductive Flux 5/64 3/32 1/8 2LB E

Item#: EG00496546

333 Dissimilar Steel MIG Welding Wire 0.035"

Lock Washer Alloy Steel 3/8"

Hex Nut Grade 5 Steel 3/8-16

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Oxy-Therm Cutting Rod 3/8 x 24"

40 High Silver Flux Coated Brazing Rod 1/16"

X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32

Item#: EG00450000

E6010 Mild/Carbon Steel Stick Electrode 1/8"

345 Tool Steel TIG Wire 1/16"

665 Copper and Brass TIG Wire 1/16"

Product Description

• Designed for Welding All Steels – Manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior Welding Speed – Three times faster than stick welding and over 1-3/4 times faster than solid wires
• High Recovery Rate – Over 90% deposition efficiency, low heat input means less distortion and better tolerance control
• All-position self-lifting slag
• Tensile Strength: 95,000 PSI/655 Mpa
• Yield Strength: 76,000 PSI/524 Mpa
• Service Temperature: Up to 600°F/316°C
• Elongation: 37%
• Corrosion Resistance: Excellent
• Hardness: 90Rb
• Current: DCEP (DC+)
• Gas: 75% Ar/25% CO2; or 100% CO2

Technical Specifications

Item#:	EG60180035
Welding Process	MIG
Type	Flux-Cored Wire
Diameter	.035 "
Tensile Strength	95,000 PSI
Yield Strength	76,000 PSI
Elongation	37 %
Hardness	90 HRB
Shielding Gas	100% CO2 or 75% AR/25% CO3
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	37.84 lb
