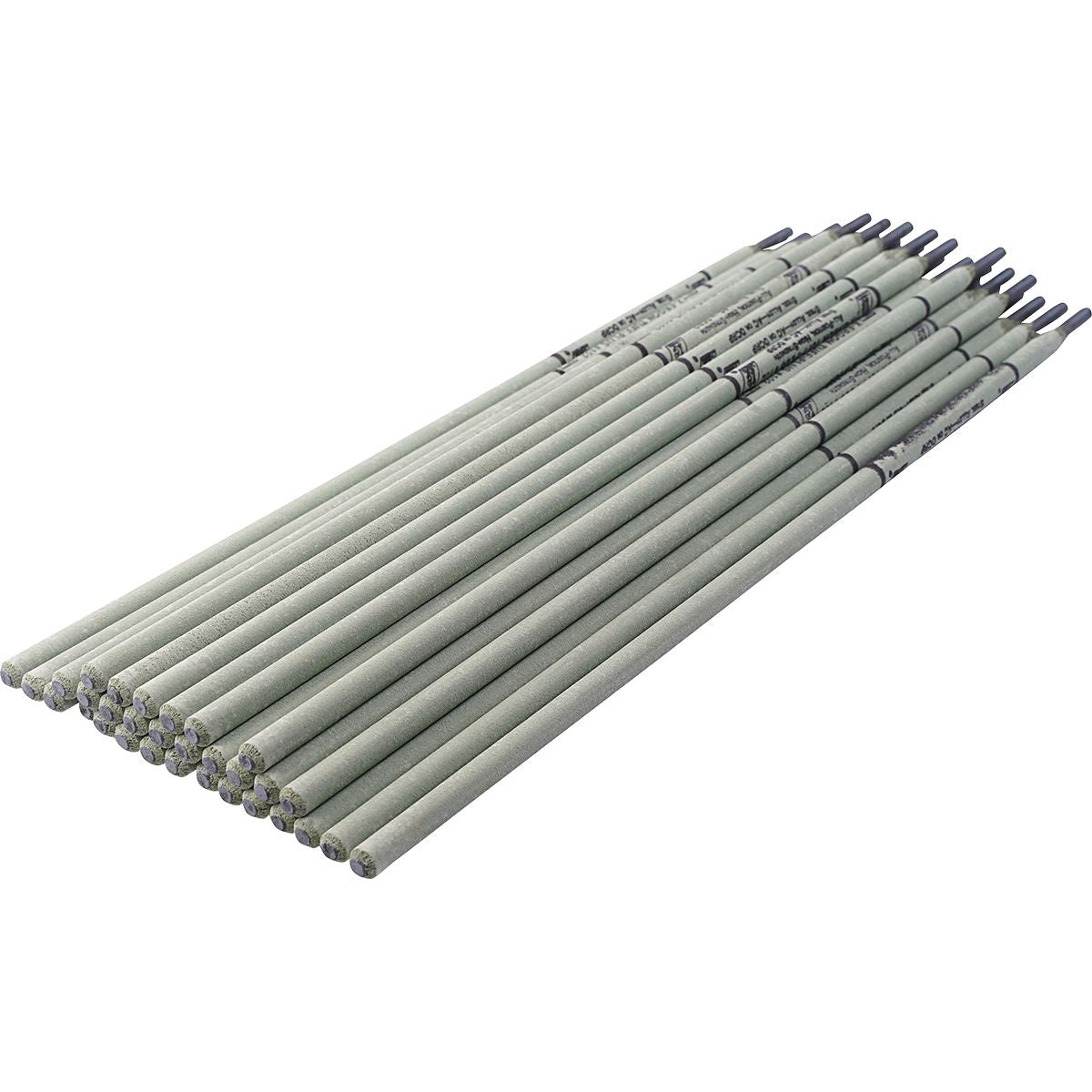

102 High Strength Torch Cuttable High Impact Resitant Low Hydrogen Electrode/Polarity Dcep/Ac/Elongation 26%/ Structural Steel
(Pack of
5)
SKU:EG10230000 Item#: EG10230000
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.
• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
Catalog page#: LE-126
Frequently Bought Together
2Pc Index-Tend Pry Bar Set
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
664 Self Shielding Mild Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire 1/16X33Lb
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/16"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG10230000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Tensile Strength | 115,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 26 % |
| Base Metal | High Strength Low-Alloy Steel |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.43 lb |
