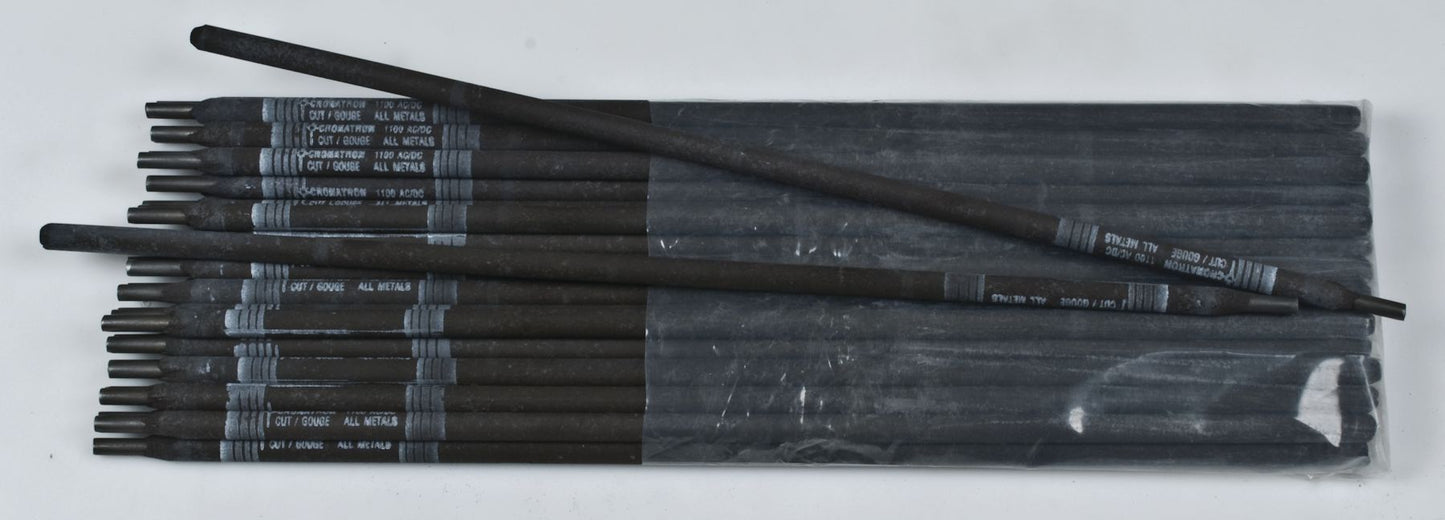

1100 Gouging and Cutting Stick Rod Electrode, 350 to 600 Amps, DCSP/AC Polarity, Smooth Cuts and Efficient Metal Removal, 1/4"
(Pack of
10)
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.
Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-3
Frequently Bought Together
RUST-OLEUM Semi-Gloss Black Aerosol Paint
Couldn't load pickup availability
3/16" - 1/2" Cryonitride Spiral Fluted Step Drill - 5/16" Shank
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
235 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Technical Specifications
| Item#: | CW3433 |
|---|---|
| Welding Process | Stick |
| Type | Cutting/Gouging |
| Diameter | 1/4 " |
| Length | 18 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
