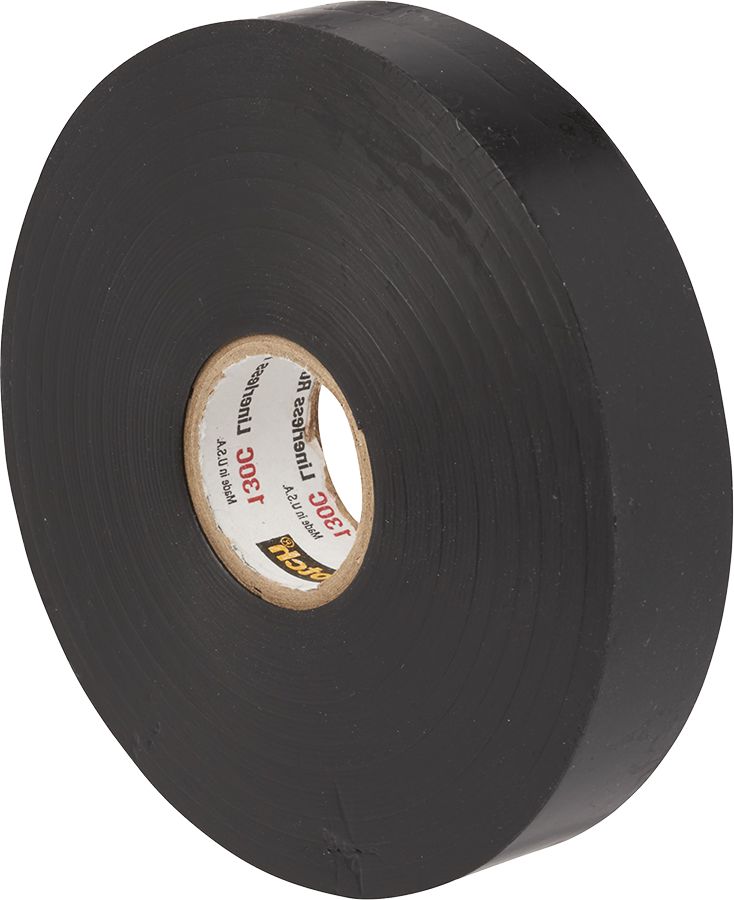

130C Linerless Rubber Splicing Tape, Black, 1" Width, 10' Length, 850% Elongation, 0 to 194℉ Temperature Rating
(Pack of
1)
SKU:1677048 Item#: 1677048
• Electrical and mechanical properties offer moisture seal and void free buildups
• Dielectric Strength: 750V/mil (30 mil thickness)
• Temperature Range: 0 to 194°F (0 to 90°C)
• Elongation: 850%
• Breaking Strength: 250 PSI
• Volatage Rating: 69 kV
• Color: Black
• ASTM Approved and RoHS 2011/65/EU Compliant
Frequently Bought Together
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Orange
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Blue
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Yellow
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
WypAll X60 Teri Wiper 9.1 x 16.8"
Couldn't load pickup availability
Nemesis Safety Glasses
Couldn't load pickup availability
Nemesis Safety Glasses with Anti-Fog Coating, Smoke Lenses, Black Frame
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
Seal Tite Fusion Wrap Gray 1"
Couldn't load pickup availability
Silifuse Identification Tape, Black, 1 In Width x .02 Thick x 10Ft Len
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 4 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.413" ID 25'
Couldn't load pickup availability
Product Description
• Electrical and mechanical properties offer moisture seal and void free buildups• Dielectric Strength: 750V/mil (30 mil thickness)
• Temperature Range: 0 to 194°F (0 to 90°C)
• Elongation: 850%
• Breaking Strength: 250 PSI
• Volatage Rating: 69 kV
• Color: Black
• ASTM Approved and RoHS 2011/65/EU Compliant
Technical Specifications
| Item#: | 1677048 |
|---|---|
| Manufacturer Model #: | 130C-1X10FT |
| Type | Individual Roll |
| Style | Rubber Resin Tape |
| Color | Black |
| Dielectric Strength | 750 V/mil |
| Length | 10 ft |
| Width | 1 " |
| Thickness | 30 mil |
| Temperature Range | 0 to 194 °F |
| Celcius Temperature Range | 0 to 90 °C |
| Elongation | 850 % |
| Breaking Strength | 250 psi |
| Voltage Rating | 69 kV |
| Approvals | ASTM D-4388 Type 1, 2 & 3, HH-I-553C |
| Description | 3M Scotch® 130C |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
