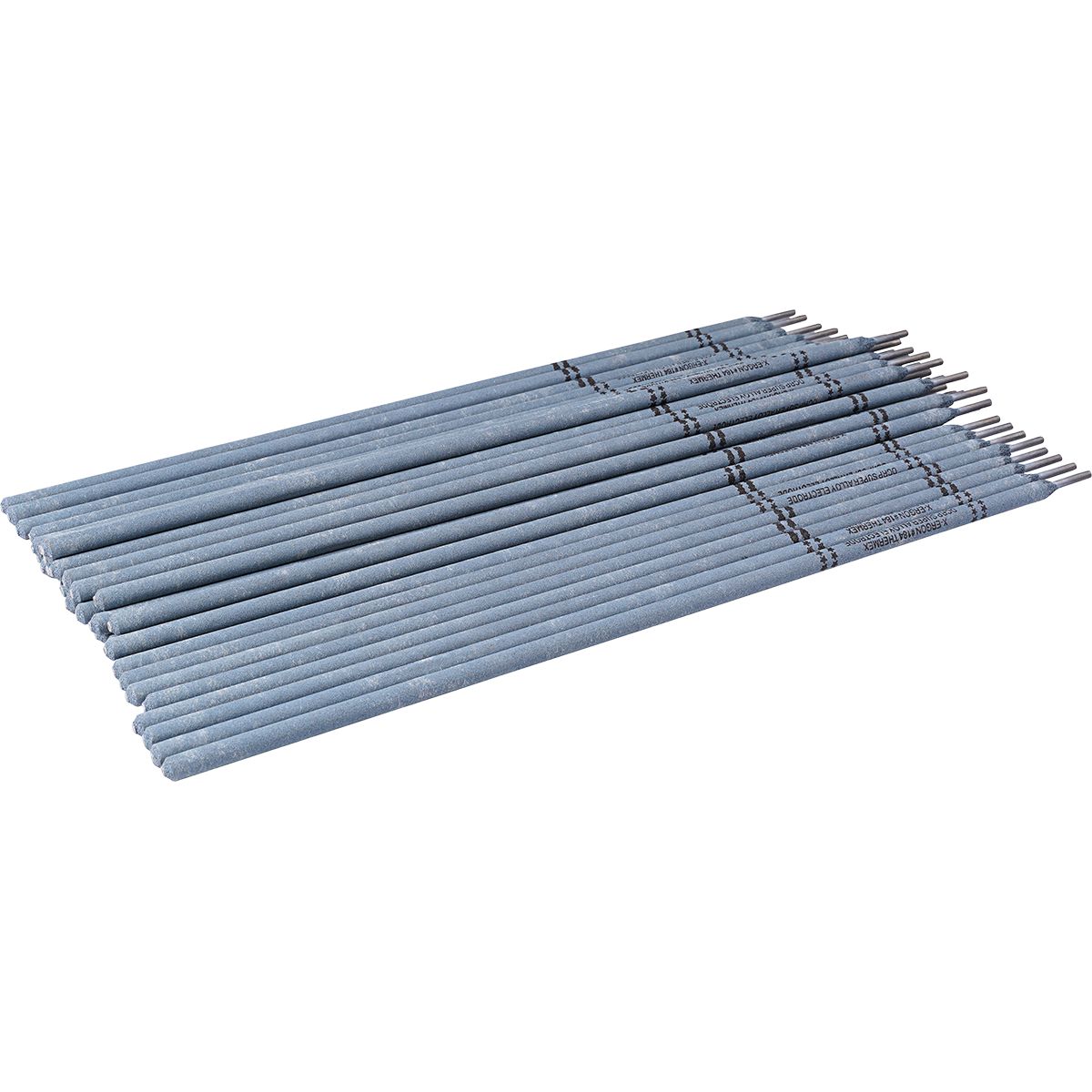

184 High Nickel High Strength High Corosion Resistant Tensile 110000 Polarity Dcep Elongation 30% 21Rc Heat Resistant 1800 F
(Pack of
5)
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.
• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Couldn't load pickup availability
Catalog page#: LE-130
Frequently Bought Together
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
1/2" Cordless Drill Driver Charging Bundle
Couldn't load pickup availability
1/4" Cordless Impact Hex Driver Charging Bundle
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability

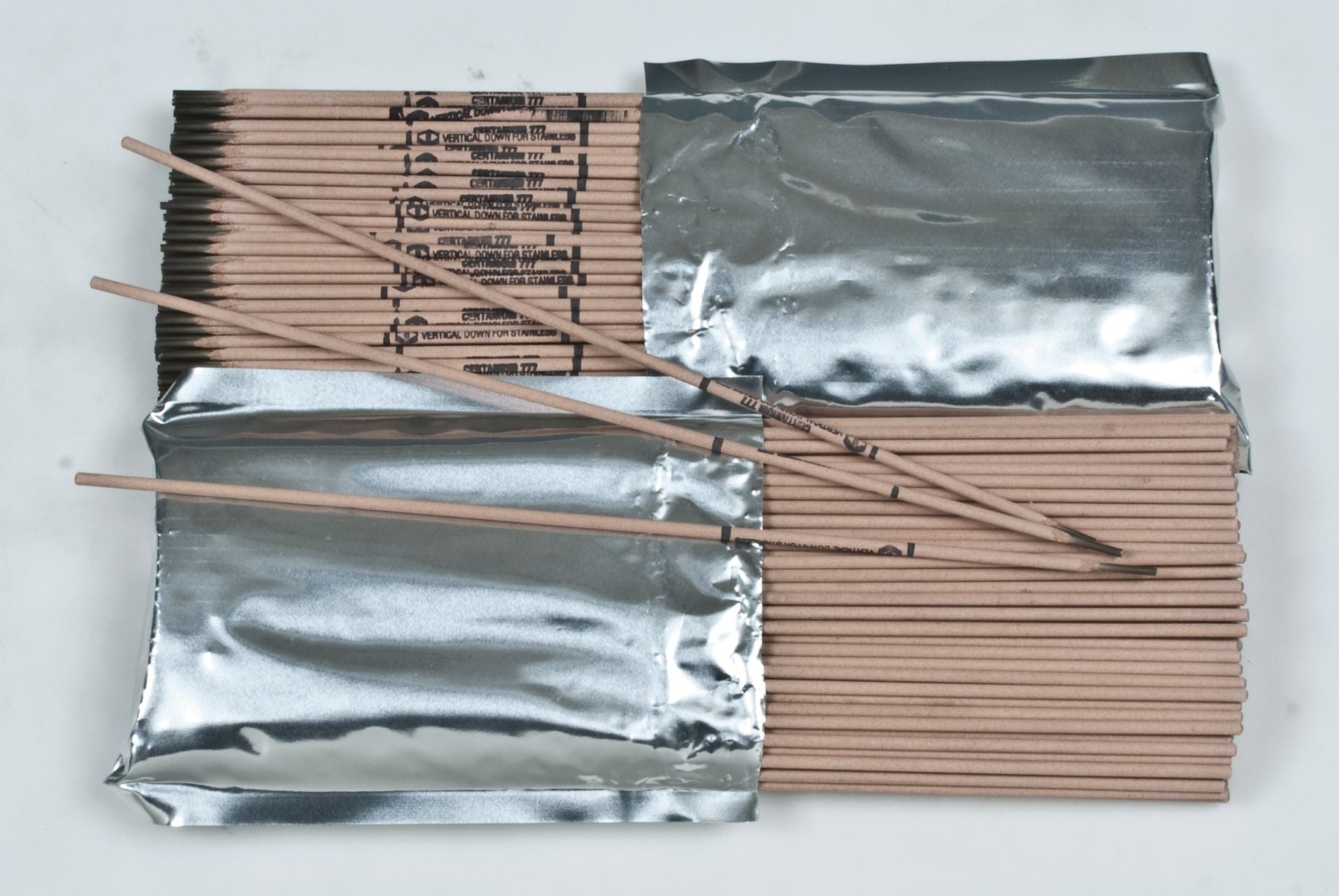

777 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
235 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
665 Copper and Brass TIG Wire 1/16"
Couldn't load pickup availability
Product Description
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Technical Specifications
| Item#: | EG18440000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/8 " |
| Tensile Strength | 110,000 PSI |
| Yield Strength | 95,000 PSI |
| Base Metal | Nickel Alloys; Dissimilar Metals |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.14 lb |
