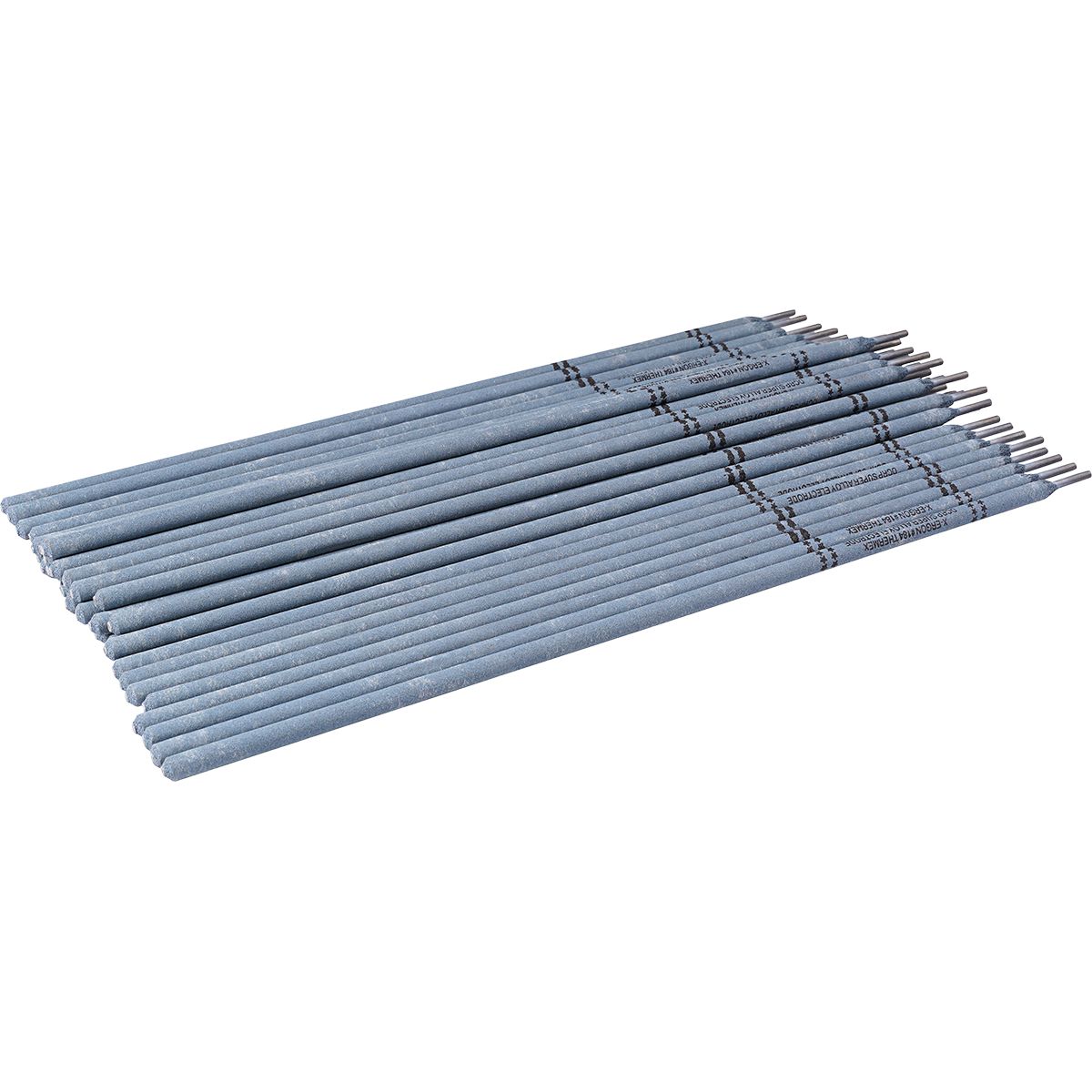

184 High Nickel High Strength High Corosion Resistant Tensile 110000 Polarity Dcep Elongation 30% 21Rc Heat Resistant 1800 F
(Pack of
5)
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.
• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-130
Frequently Bought Together
1100 Gouging and Cutting Stick Rod Electrode 5/32"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
1/2" Cordless Drill Driver Charging Bundle
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
ER309L Stainless Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
377 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Oxy Acetylene Fuel and Oxygen Quick Connector
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Tip Cleaner
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
657 Premium Bronze Solid Mig Wire .035X30LB SPL
Couldn't load pickup availability
665 Copper and Brass TIG Wire 1/8"
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Product Description
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Technical Specifications
| Item#: | EG18450000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 110,000 PSI |
| Yield Strength | 95,000 PSI |
| Base Metal | Nickel Alloys; Dissimilar Metals |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.08 lb |
