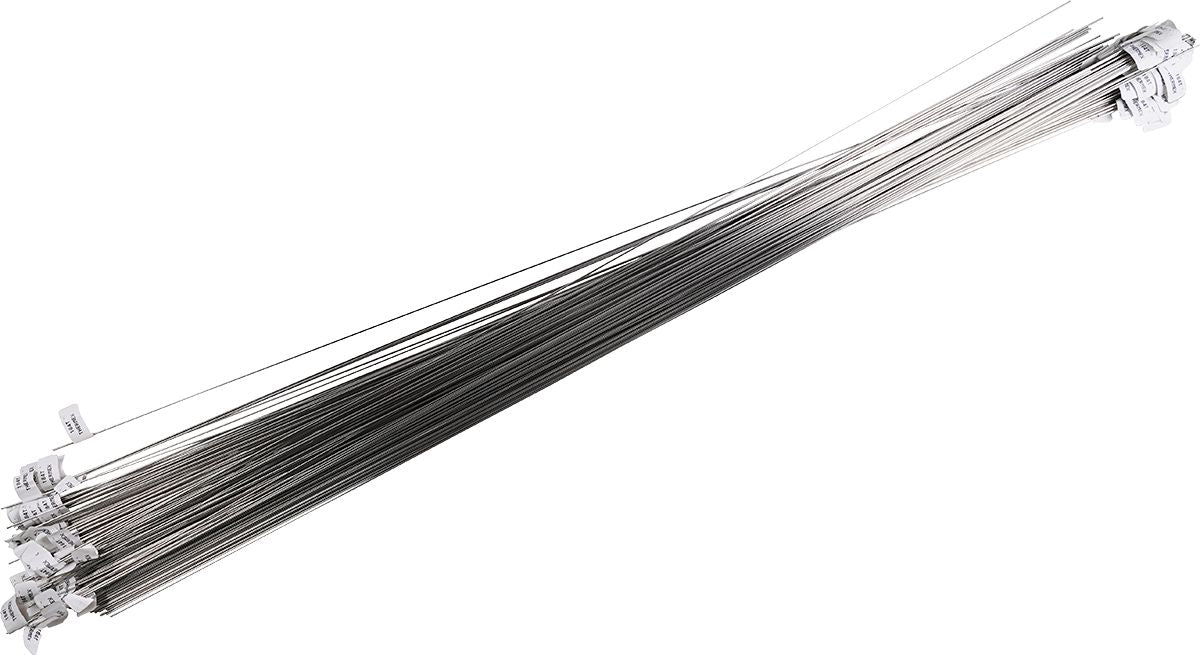

184T High Nickel Molybendum Tig Wire 5/32X36
(Pack of
5.0)
A high-strength alloy with high-nickel and molybdenum content that gives outstanding corrosion and heat resistance. It is highly resistant to chloride pitting and stress corrosion cracking. Columbium alloy additions increase weld stability. Excellent for welding dissimilar nickel base alloys and nickel alloys to ferrous metals. It is also well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Hastelloy B, C or G, and Carpenter 20 Cb.
• Tensile Strength: 110,000 PSI/758 Mpa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/507 Mpa – 1800°F/982°C: 25,000 PSI/173 Mpa
• Elongation: 30%
• Current: DCEN (DC-)
• Gas: 100% Argon
• Sulfuric Acid – Good up to 150°F/66°C for all concentrations, also good up to the boiling point for all concentrations below 10%
• Hydrochloric Acid – Very good up to 120°F/49°C for all concentrations
• Nitric Acid – Excellent corrosion resistance at almost all temperatures and concentrations
• Phosphoric Acid – Excellent at temperatures below 225°F/143°C for all concentrations
• Good above 225°F/143°C, except near the boiling point in very high concentrations
• Organic Acids – Generally excellent at all temperatures and concentrations
• Sodium Hydroxide (Caustic) – Generally excellent at all temperatures and concentrations
Frequently Bought Together
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 1/16"
Couldn't load pickup availability
3880 Stainless Steel MIG Welding Wire 0.024"
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Flint Striker
Couldn't load pickup availability
ER4043 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Product Description
A high-strength alloy with high-nickel and molybdenum content that gives outstanding corrosion and heat resistance. It is highly resistant to chloride pitting and stress corrosion cracking. Columbium alloy additions increase weld stability. Excellent for welding dissimilar nickel base alloys and nickel alloys to ferrous metals. It is also well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Hastelloy B, C or G, and Carpenter 20 Cb.• Tensile Strength: 110,000 PSI/758 Mpa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/507 Mpa – 1800°F/982°C: 25,000 PSI/173 Mpa
• Elongation: 30%
• Current: DCEN (DC-)
• Gas: 100% Argon
• Sulfuric Acid – Good up to 150°F/66°C for all concentrations, also good up to the boiling point for all concentrations below 10%
• Hydrochloric Acid – Very good up to 120°F/49°C for all concentrations
• Nitric Acid – Excellent corrosion resistance at almost all temperatures and concentrations
• Phosphoric Acid – Excellent at temperatures below 225°F/143°C for all concentrations
• Good above 225°F/143°C, except near the boiling point in very high concentrations
• Organic Acids – Generally excellent at all temperatures and concentrations
• Sodium Hydroxide (Caustic) – Generally excellent at all temperatures and concentrations
Technical Specifications
| Item#: | EG2003184T |
|---|---|
| Welding Process | TIG |
| Type | TIG |
| Diameter | 5/32 " |
| Length | 36 " |
| Tensile Strength | 110,000 PSI |
| Base Metal | Nickel Alloys; Dissimilar Metals |
| Hardness | 21 HRC |
| Shielding Gas | 100% Argon |
| Polarity | DCEN |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 5.96 lb |
