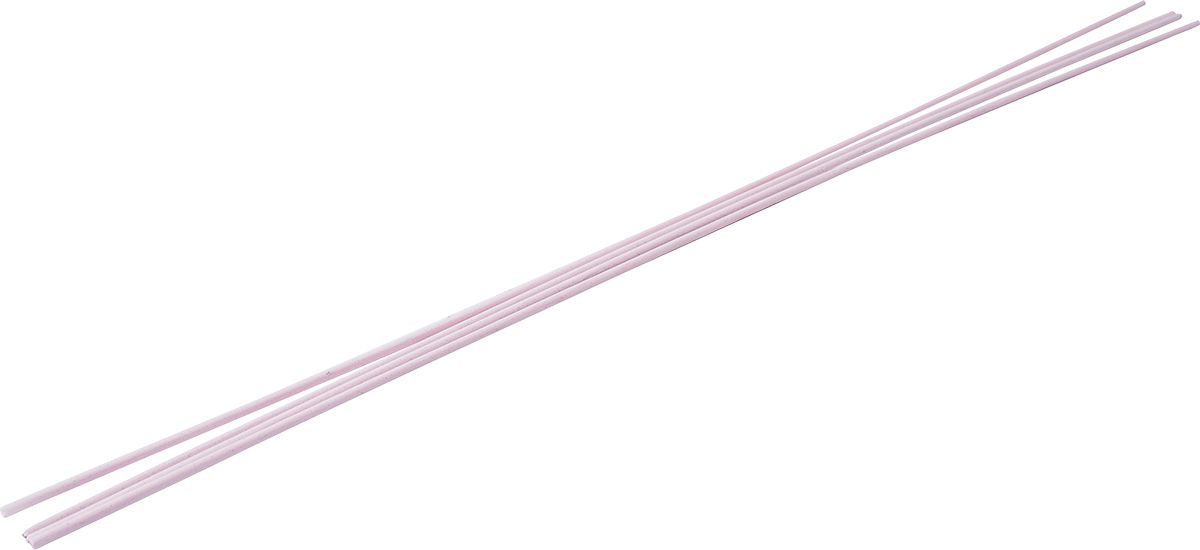

266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
(Pack of
6)
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals.
• Balanced Flux – Capillary action and flow characteristics are superior to other flux coated silver alloys
• Non-Charring Flux – Will not obscure the joint
• Low melting temperature and narrow plastic range
• Flexible Coating – Resists chipping
• Low Fuming – Safer to use
• Joint Strength: Up to 70,000 PSI/483 MPa
• Elongation: 36%
• Working Temperature: 1198°F/649°C
• Electrical Conductivity: 11.9% IACS
• Corrosion Resistance: Excellent
• Coating: Pink
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: LE-132
Frequently Bought Together
23 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
43 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Product Description
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals.• Balanced Flux – Capillary action and flow characteristics are superior to other flux coated silver alloys
• Non-Charring Flux – Will not obscure the joint
• Low melting temperature and narrow plastic range
• Flexible Coating – Resists chipping
• Low Fuming – Safer to use
• Joint Strength: Up to 70,000 PSI/483 MPa
• Elongation: 36%
• Working Temperature: 1198°F/649°C
• Electrical Conductivity: 11.9% IACS
• Corrosion Resistance: Excellent
• Coating: Pink
Technical Specifications
| Item#: | EG26680000 |
|---|---|
| Welding Process | Brazing |
| Type | Flux-Coated Brazing Rod |
| Diameter | 3/64 " |
| Length | 18 " |
| Tensile Strength | 70,000 PSI |
| Melting Temperature | 1,198 °F |
| Color | Pink |
| Base Metal | All Metals Except White Metals |
| Recommended Flux | 361 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.345 lb |
