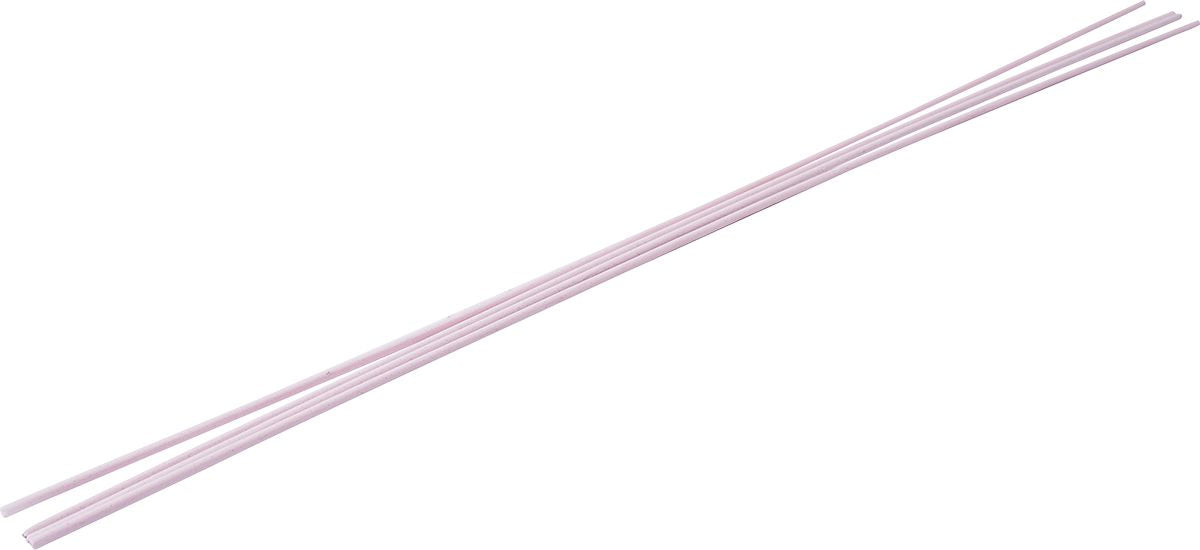

266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 1/16X18
(Pack of
6)
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals.
Balanced Flux Capillary action and flow characteristics are superior to other flux coated silver alloys
Non-Charring Flux Will not obscure the joint
Low melting temperature and narrow plastic range
Flexible Coating Resists chipping
Low Fuming Safer to use
Joint Strength: Up to 70,000 PSI/483 MPa
Elongation: 36%
Working Temperature: 1198°F/649°C
Electrical Conductivity: 11.9% IACS
Corrosion Resistance: Excellent
Coating: Pink
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: LE-132
Frequently Bought Together

51 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability

23 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability

30 Copper and Steel Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability

Food Grade Silicone Lubricant 10oz
Couldn't load pickup availability

10" Auto-Adjust Pliers
Couldn't load pickup availability

CryoBoost Cobalt Drill Bit, 19/64" Dia. W/Flats
Couldn't load pickup availability

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability

IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability

41 Silver Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability

263 Bare Silver Alloy 1/16X6FT
Couldn't load pickup availability

40 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability

E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability

331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Product Description
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals. Balanced Flux Capillary action and flow characteristics are superior to other flux coated silver alloys
Non-Charring Flux Will not obscure the joint
Low melting temperature and narrow plastic range
Flexible Coating Resists chipping
Low Fuming Safer to use
Joint Strength: Up to 70,000 PSI/483 MPa
Elongation: 36%
Working Temperature: 1198°F/649°C
Electrical Conductivity: 11.9% IACS
Corrosion Resistance: Excellent
Coating: Pink
Technical Specifications
Item#: | EG26670000 |
---|---|
Welding Process | Brazing |
Type | Flux-Coated Brazing Rod |
Diameter | 1/16 " |
Length | 18 " |
Tensile Strength | 70,000 PSI |
Melting Temperature | 1,198 °F |
Color | Pink |
Base Metal | All Metals Except White Metals |
Recommended Flux | 361 |
UNSPSC #: | 23271804 |
TAA Compliant: | Yes |
Weight: | 0.275 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
