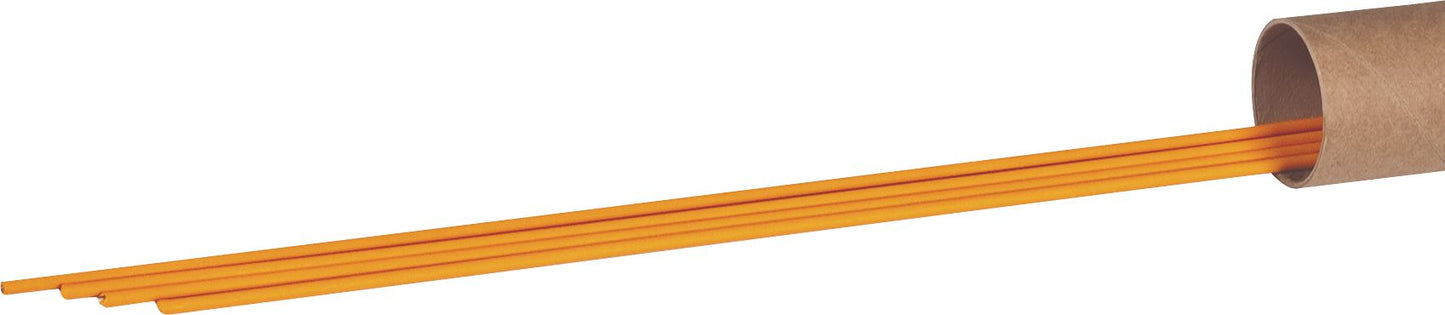

40 High Silver Flux Coated Brazing Rod, Orange, 18" Length, 1/16"
(Pack of
6)
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.
Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Flux Coating Color: OrangeTensile Strength: 85,000 PSIMelting Temperature: 1,140°F (616°C)Recommended Flux: F40 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 13-27
Frequently Bought Together
43 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 1/16X18
Couldn't load pickup availability
264 Bare High Silver Cadium Free Alloy 1/16x18
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
Product Description
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Flux Coating Color: OrangeTensile Strength: 85,000 PSIMelting Temperature: 1,140°F (616°C)Recommended Flux: F40 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Technical Specifications
| Item#: | CW1025 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 85,000 PSI |
| Melting Temperature | 1140 °F |
| Color | Orange |
| Base Metal | Silver |
| Silver Content | High |
| Recommended Flux | F40 |
| Description | High Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.54 lb |
