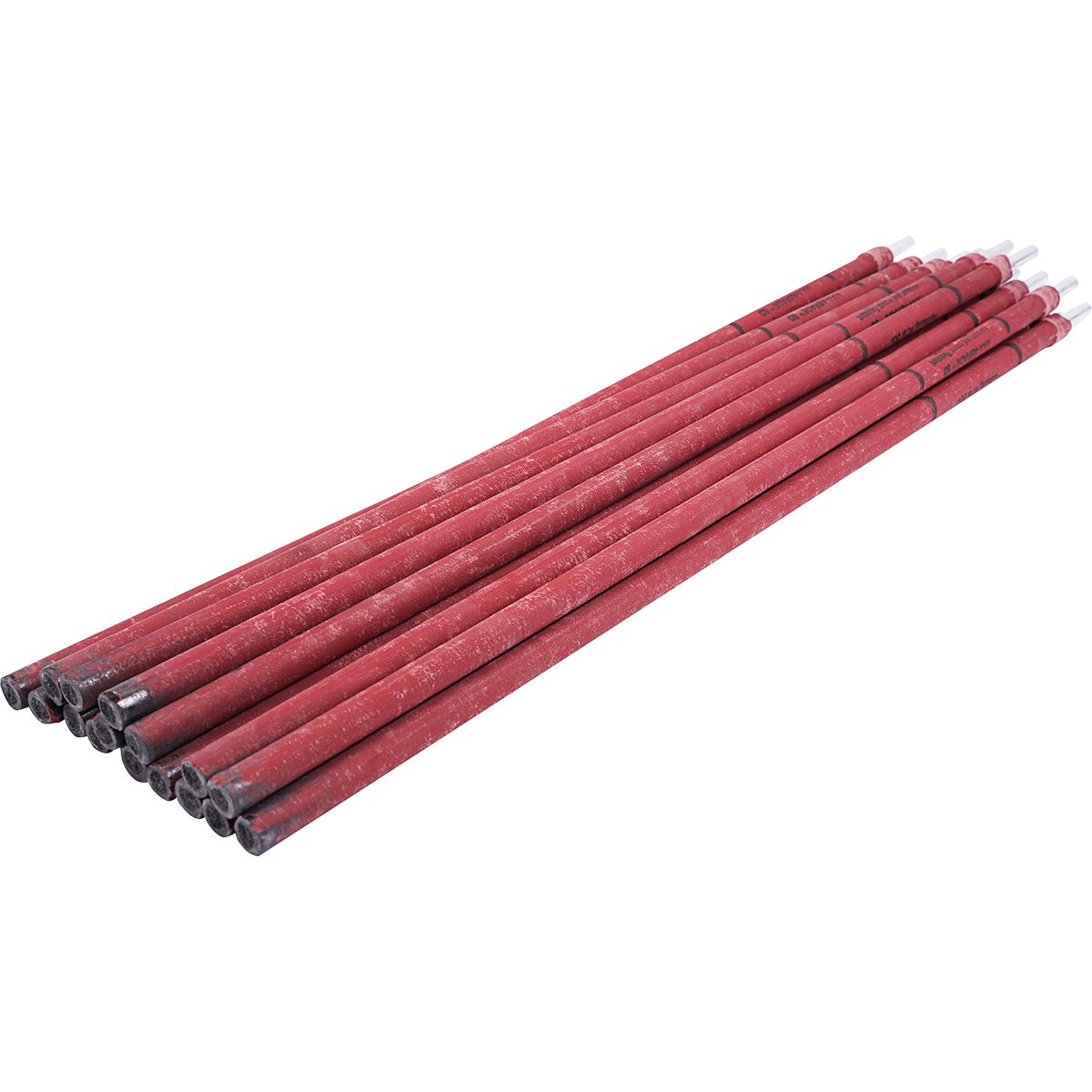

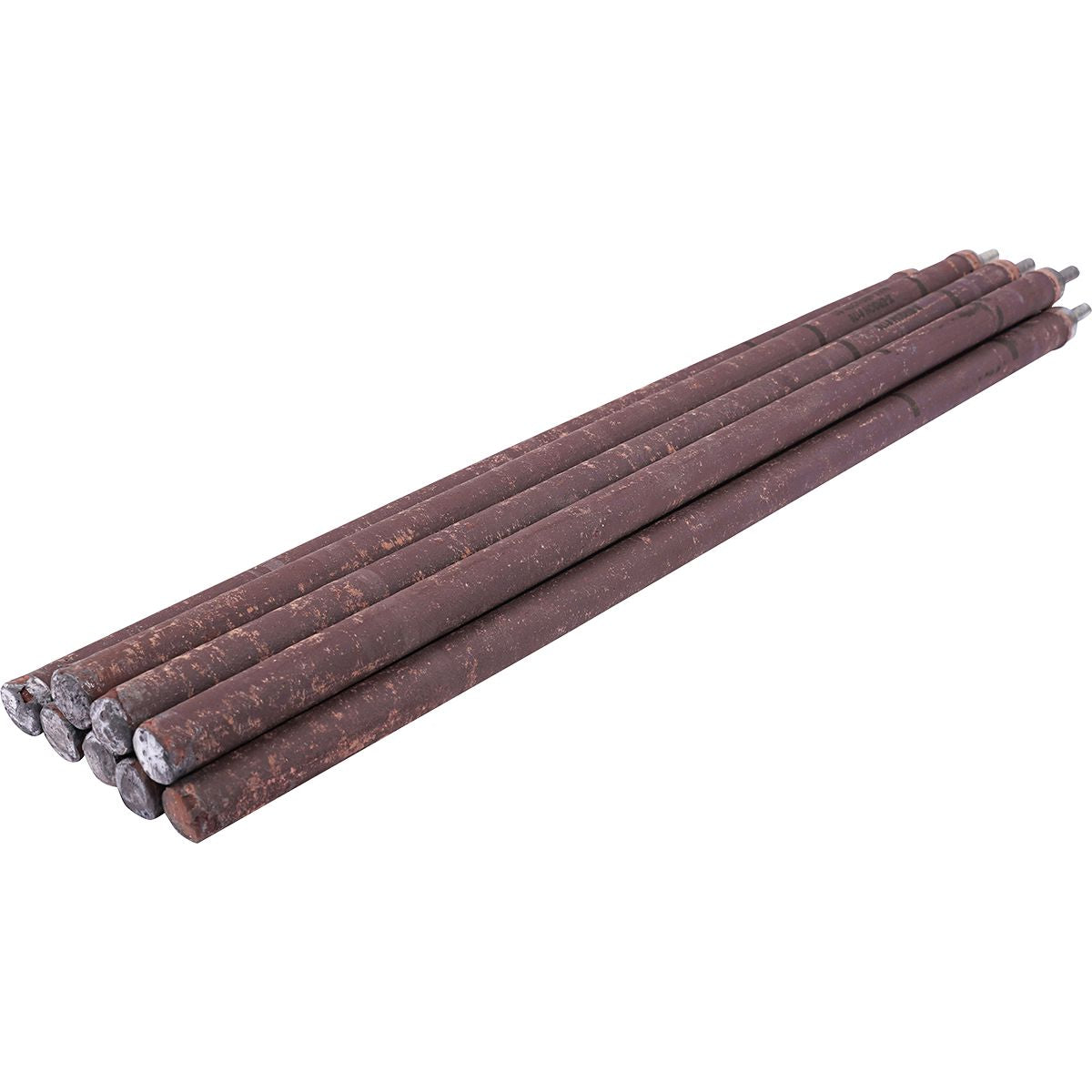

176 Extreme Abrasion With Impact 1/4X18IN
(Pack of
5.0)
A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
777 Austenitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability
676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS
Couldn't load pickup availability
750 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 3/16"
Couldn't load pickup availability
7350 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
7230 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Heat Stick 250F Degrees
Couldn't load pickup availability
Heat Stick 650F Degrees
Couldn't load pickup availability
Heat Stick 850F Degrees
Couldn't load pickup availability
Product Description
A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss
Technical Specifications
| Item#: | EG17610250 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/4 " |
| Base Metal | Steel To Steel |
| Hardness | 62-64 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.31 lb |
