Home Welding Hardfacing Alloys High Abrasion/Low Impact (Carbide) 174 Gray High Abrasion Moderate Impact 1/8
Hardfacing Alloys

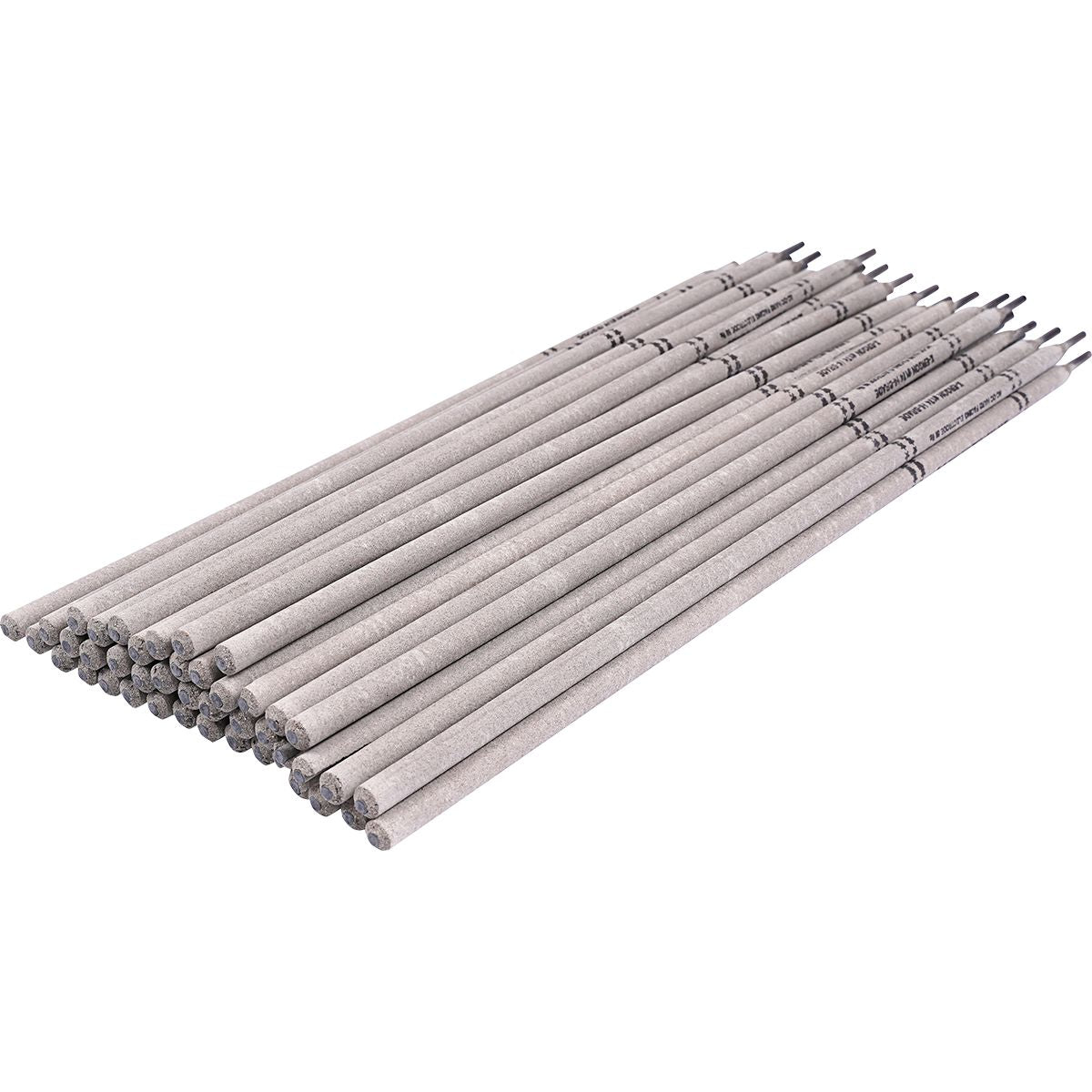

174 Gray High Abrasion Moderate Impact 1/8
174 Gray High Abrasion Moderate Impact 1/8

174 Produces Iron Chromium Carbides High Deposition Hardness 58Rc 3Passes Max Polarity Decep Or Ac For Carbon Steels Or Manganese
(Pack of 5)

Item#: EG17440000

Lawson Products

Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.
• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD

Item#: EG67580045
777 Austenitic Hard Facing Stick Electrode 5/32

777 Austenitic Hard Facing Stick Electrode 5/32"

Item#: CW1062
750 Martensitic Stick Rod Electrode 5/32

750 Martensitic Stick Rod Electrode 5/32"

Item#: CS1515
H75 Carbide Hard Facing MIG Welding Wire 0.045

H75 Carbide Hard Facing MIG Welding Wire 0.045"

Item#: CW6120
H10 Carbide Hard Facing MIG Welding Wire 1/16

H10 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW6116
H7 Carbide Hard Facing MIG Welding Wire 0.045

H7 Carbide Hard Facing MIG Welding Wire 0.045"

Item#: CW6081
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539
SAE Flat Washer Thru-Hardened Steel 5/16

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436
USS Flat Washer Thru-Hardened Steel 5/16

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446
24A-62 MIG Welding Nozzle 5/8

24A-62 MIG Welding Nozzle 5/8"

Item#: CW4049
331 Mild and Carbon Steel MIG Welding Wire 0.035

331 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW3777
345 Tool Steel TIG Wire 1/16

345 Tool Steel TIG Wire 1/16"

Item#: CW1888
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010
USS Flat Washer Steel 5/16

USS Flat Washer Steel 5/16"

Item#: BC502
SAE Flat Washer 3/4

SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD

Item#: P56827
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010
USS Flat Washer Steel 5/16

USS Flat Washer Steel 5/16"

Item#: BC502
SAE Flat Washer 3/4

SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD

Item#: P56827

Product Description

Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.
• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss

Technical Specifications

Item#: EG17440000
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Steel To Steel
Hardness 58 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.06 lb
