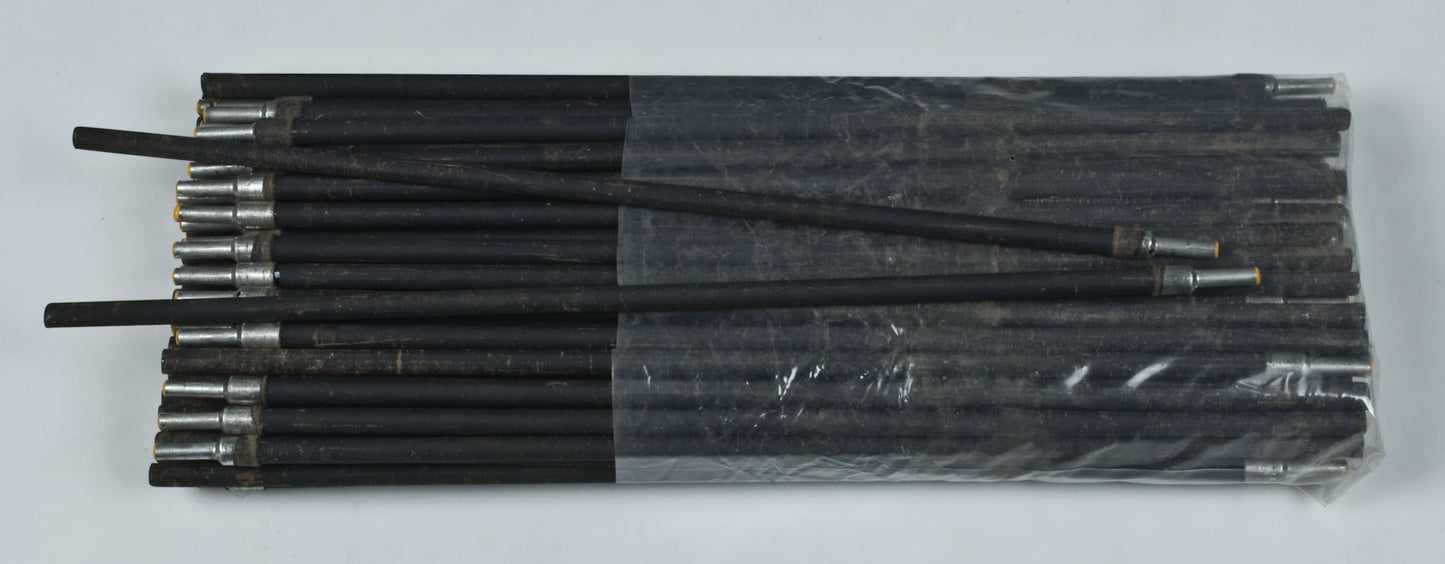

7350 Carbide Hard Facing Stick Rod Electrode, 50 to 64 HRC Hardness, 75 to 200 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of
25)
SKU:CW1916 Item#: CW1916
The 7350 Carbide Hardfacing Stick Rod Electrode is expertly engineered for applications demanding exceptional abrasion resistance in low to moderate impact environments. Featuring minimal base metal dilution and an impressive 95% metal recovery (compared to the industry-standard 65%), this electrode ensures durability and efficiency. Its 1/4" diameter allows for superior out-of-position welding with excellent edge control, making it an ideal choice for maintenance and repair professionals tackling high-stress grinding and gouging wear. Designed to protect surfaces from abrasive materials like sand, gravel, and minerals, the 7350 delivers a hardness rating of Rc 64 (on the second pass) and works seamlessly with both AC and DC reverse polarity setups, ensuring reliability and performance.
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)No. of Passes: TwoPolarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-18
Frequently Bought Together
174 Gray High Abrasion Moderate Impact 1/8
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
Couldn't load pickup availability
671 Impact And Abrasion Resistant Flux Cored Self Sheilded 1/16X25LB
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .035X25LBS
Couldn't load pickup availability
7310 Carbide Hard Facing MIG Welding Wire 1/16"
Couldn't load pickup availability
246 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
Product Description
The 7350 Carbide Hardfacing Stick Rod Electrode is expertly engineered for applications demanding exceptional abrasion resistance in low to moderate impact environments. Featuring minimal base metal dilution and an impressive 95% metal recovery (compared to the industry-standard 65%), this electrode ensures durability and efficiency. Its 1/4" diameter allows for superior out-of-position welding with excellent edge control, making it an ideal choice for maintenance and repair professionals tackling high-stress grinding and gouging wear. Designed to protect surfaces from abrasive materials like sand, gravel, and minerals, the 7350 delivers a hardness rating of Rc 64 (on the second pass) and works seamlessly with both AC and DC reverse polarity setups, ensuring reliability and performance.• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)No. of Passes: TwoPolarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.
Technical Specifications
| Item#: | CW1916 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 3/8 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Chromium |
| Hardness | 50-64 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 26.0 lb |
