Home Welding Hardfacing Alloys High Abrasion/Low Impact (Carbide) 7220 Carbide Hard Facing Stick Rod Electrode 1/4"
Hardfacing Alloys

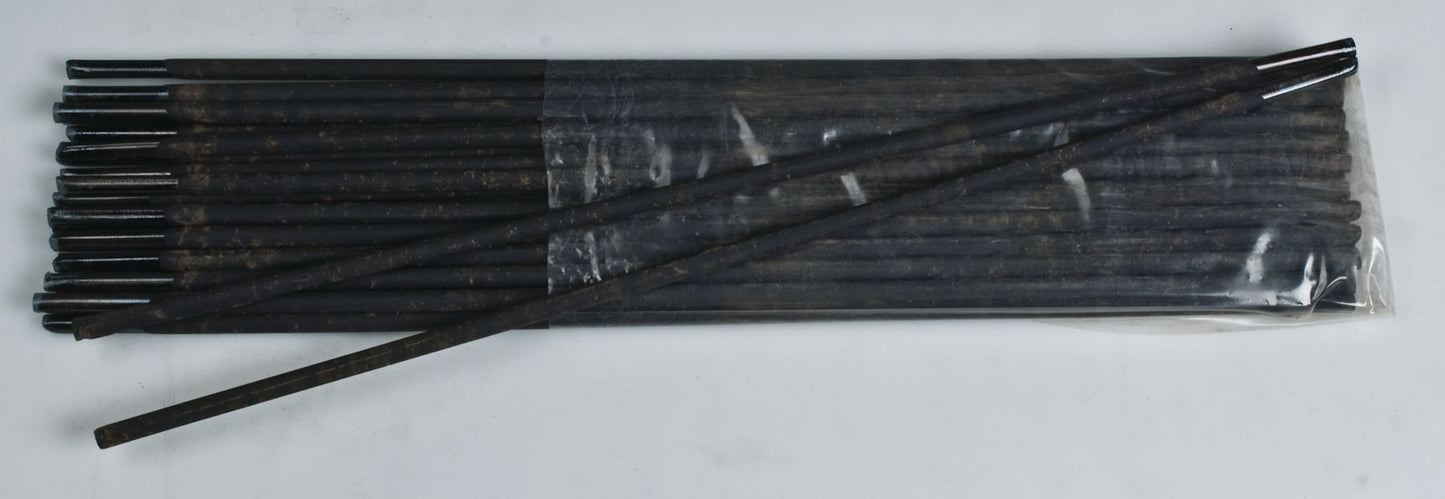

7220 Carbide Hard Facing Stick Rod Electrode 1/4
7220 Carbide Hard Facing Stick Rod Electrode 1/4

7220 Carbide Hard Facing Stick Rod Electrode, 65 to 68 HRC Hardness, 90 to 125 Amps, AC/DCRP Polarity, 18" Length, 1/4"
(Pack of 5)

Item#: CW1846

Cronatron®

Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)
No. of Passes: Two maximum
Polarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 13-19

Frequently Bought Together

281 Martensitic Stick Rod Electrode 5/32

281 Martensitic Stick Rod Electrode 5/32"

Item#: P12037
172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18

172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18

Item#: EG1722000X
706 Hard Facing Buildup MIG Welding Wire 1/16

706 Hard Facing Buildup MIG Welding Wire 1/16"

Item#: P19543
7230 Carbide Hard Facing Stick Rod Electrode 3/8

7230 Carbide Hard Facing Stick Rod Electrode 3/8"

Item#: CW1910
7370 Carbide Hard Facing Stick Rod Electrode 3/8

7370 Carbide Hard Facing Stick Rod Electrode 3/8"

Item#: CW1919
176 Extreme Abrasion With Impact 3/8X18IN

176 Extreme Abrasion With Impact 3/8X18IN

Item#: EG17610375
USS Flat Washer Thru-Hardened Steel 1/4

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
Oxy Acetylene Fuel Gas Tip Cleaner, Standard Oxy Acetylene Fuel Gas Tip Cleaner

Oxy Acetylene Fuel Gas Tip Cleaner

Item#: CW1337
333 Dissimilar Steel Stick Rod Electrode 1/8

333 Dissimilar Steel Stick Rod Electrode 1/8"

Item#: CW1048
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

Item#: 41756

Product Description

Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)
No. of Passes: Two maximum
Polarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.

Technical Specifications

Item#: CW1846
Welding Process Stick
Type Tubular
Diameter 1/4 "
Length 18 "
Base Metal Carbide
Carbide Type Complex Tungsten/Chrome
Hardness 65-68 HRC
Polarity AC/DCRP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 5.5 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
