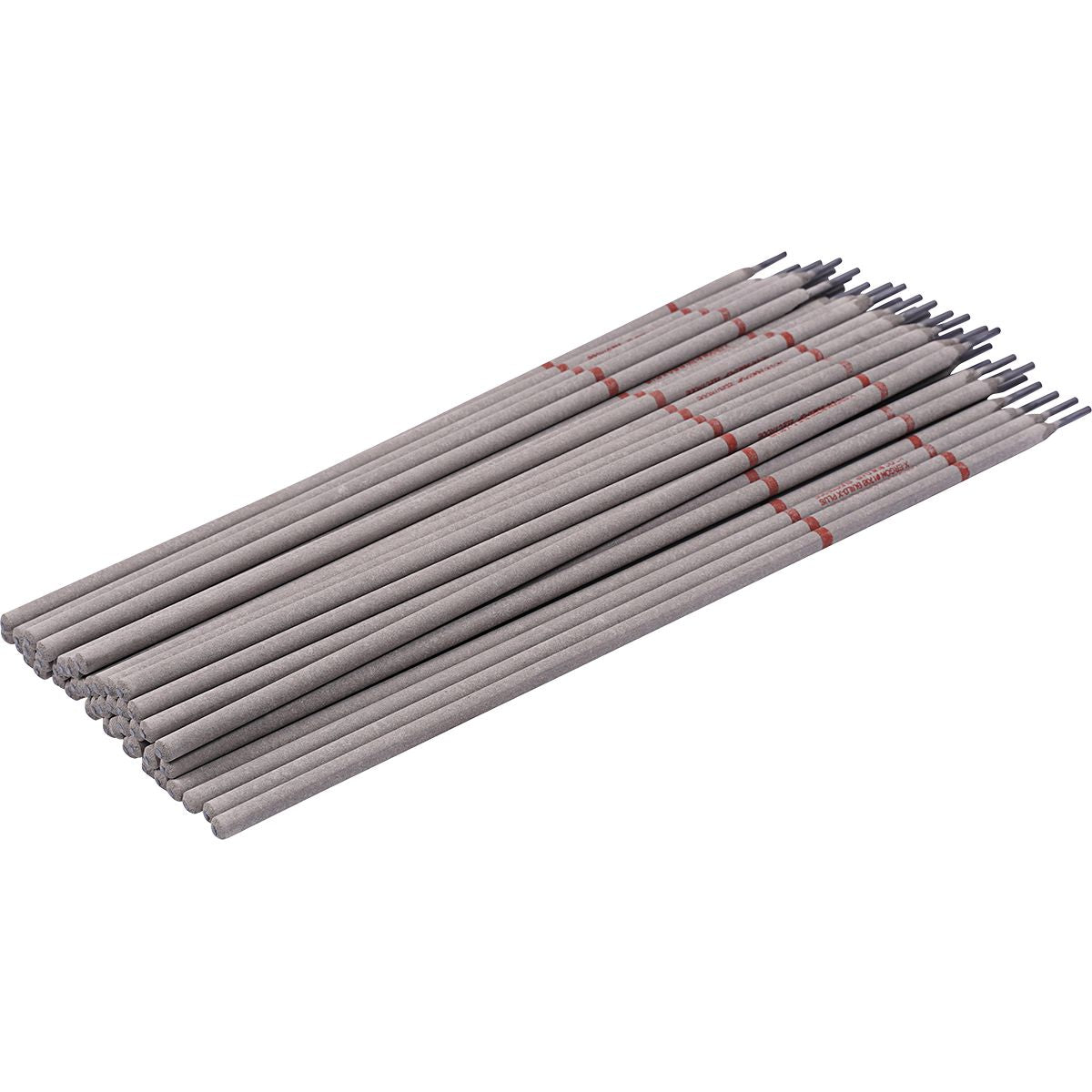

170 For Overlays And Build Up All Position Torchable Polarity Dc Or Ac Hardness 24Rc Tensile 118000 Unlimited Passes
(Pack of
5)
SKU:EG1703000B Item#: EG1703000B
Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.
Couldn't load pickup availability
Catalog page#: LE-128
Frequently Bought Together
170 Build Up Of Carbon And Low Alloy Steels 3/16
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 1/8
Couldn't load pickup availability
706 Hard Facing Buildup Stick Rod Electrode 5/32"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 1/8"
Couldn't load pickup availability
7770 Hard Facing Buildup Stick Rod Electrode 5/32"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.
Technical Specifications
| Item#: | EG1703000B |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Base Metal | Carbon And Alloy Steels |
| Hardness | 24 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.61 lb |
