Home Welding Hardfacing Alloys Build-up 170 Build Up Of Carbon And Low Alloy Steels 1/8
Build-up

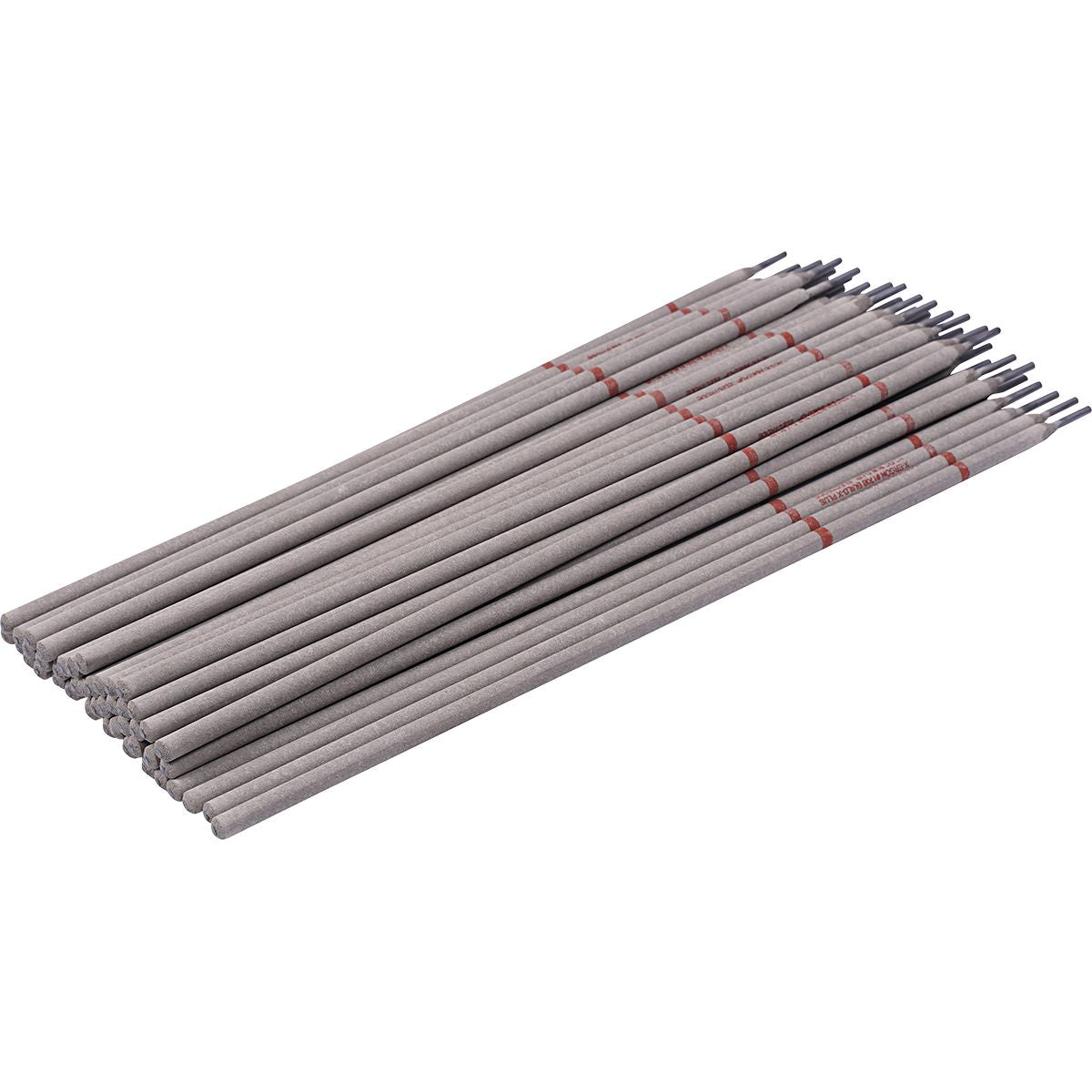

170 Build Up Of Carbon And Low Alloy Steels 1/8
170 Build Up Of Carbon And Low Alloy Steels 1/8

170 For Overlays And Build Up Wont Spall Or Mushroom Torchable Polarity Dc Or Ac Hardness 50Rc Tensile 125000 Unlimited Passes
(Pack of 5)

Item#: EG1703100B

Lawson Products

Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

375 Mild and Carbon Steel MIG Welding Wire 1/16

706 Hard Facing Buildup MIG Welding Wire 0.045"

Item#: P19557
7770 Hard Facing Buildup Stick Rod Electrode 5/32

7770 Hard Facing Buildup Stick Rod Electrode 5/32"

Item#: CW1879
706 Hard Facing Buildup MIG Welding Wire 1/16

706 Hard Facing Buildup MIG Welding Wire 1/16"

Item#: P19543
H3 Martensitic Hard Facing MIG Welding Wire 0.045

H3 Martensitic Hard Facing MIG Welding Wire 0.045"

Item#: CW6041
7770 Hard Facing Buildup Stick Rod Electrode 1/4

7770 Hard Facing Buildup Stick Rod Electrode 1/4"

Item#: CW1876
375 Mild and Carbon Steel MIG Welding Wire 1/16

706 Hard Facing Buildup MIG Welding Wire 0.045"

Item#: P19557
Butt Connector 16 to 14 AWG Clear, Butt Connector, Crystal Clear Insulation with Blue Stripe, 16 to 14 AWG

Butt Connector 16 to 14 AWG Clear

Item#: 1368141
Butt Connector 22 to 18 AWG Clear, Butt Connector, Crystal Clear Insulation with Red Stripe, 22 to 18 AWG

Butt Connector 22 to 18 AWG Clear

Item#: 1368140
High Solids Paints Gloss Black, High Solids Paints, Gloss Black, 16oz Aerosol

High Solids Paints Gloss Black

Item#: 1509224
Oxy Acetylene Fuel Gas Single Flint Striker, Electro-Zinc Plated

Oxy Acetylene Fuel Gas Single Flint Striker

Item#: CW1306
Rosin Core Solder 0.032

Rosin Core Solder 0.032"

Item#: 20556
Solid Solder 1/32

Solid Solder 1/32"

Item#: P52064M01
8Pc Metric Mini Double Head Wrench Set, 8Pc, 5mm To 11mm Metric Mini Double Head Wrench Set

8Pc Metric Mini Double Head Wrench Set

Item#: DY89250450
10Pc SAE Mini Combination Wrench Set, 10pc, 3/16

10Pc SAE Mini Combination Wrench Set

Item#: DY89250400
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr, 10 Piece , 3/8

Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr

Item#: DY89310055
8Pc Metric Mini Double Head Wrench Set, 8Pc, 5mm To 11mm Metric Mini Double Head Wrench Set

8Pc Metric Mini Double Head Wrench Set

Item#: DY89250450
10Pc SAE Mini Combination Wrench Set, 10pc, 3/16

10Pc SAE Mini Combination Wrench Set

Item#: DY89250400
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr, 10 Piece , 3/8

Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr

Item#: DY89310055

Product Description

Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.

Technical Specifications

Item#: EG1703100B
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Carbon And Alloy Steels
Hardness 55 HRC
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 5.3 lb
