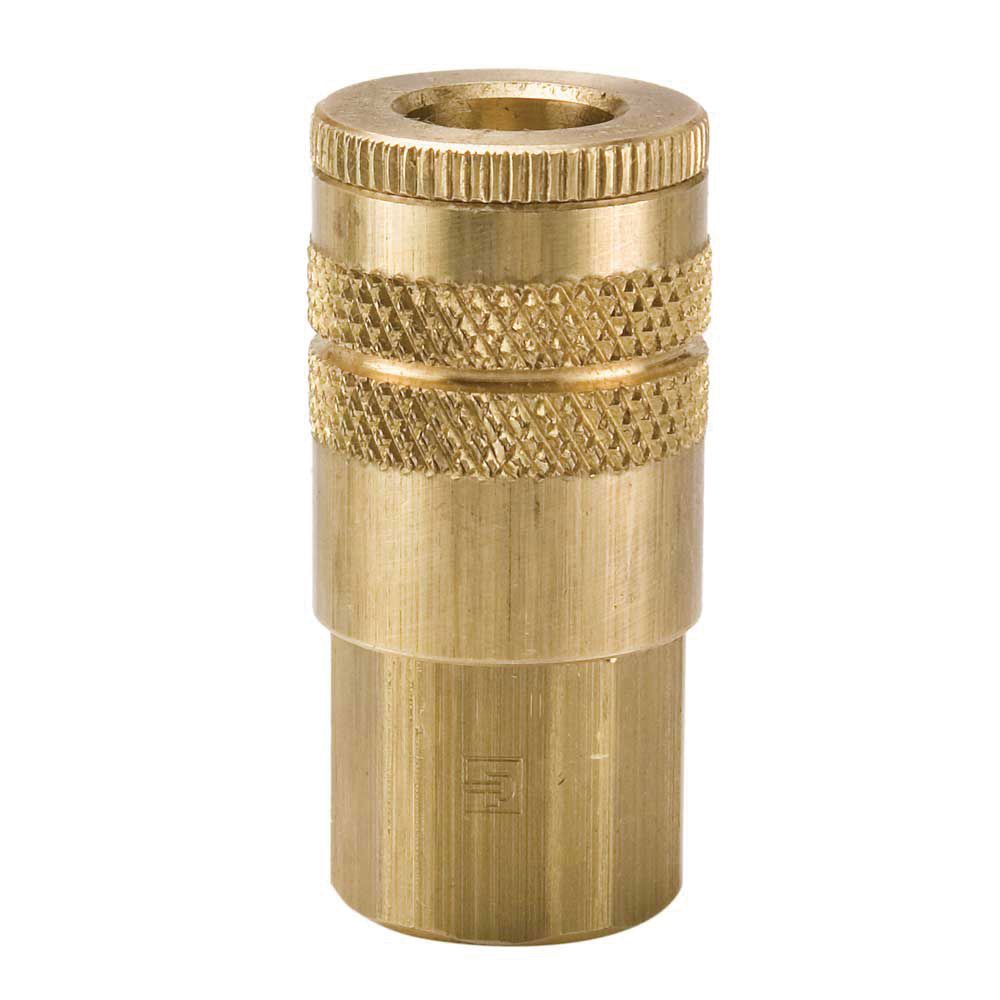

20 Series Coupler, Brass, Standard Industrial, 300PSI, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:1269502 Item#: 1269502
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.
• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Garden Hose Adapter Brass 3/4-14 x 3/4-11-1/2
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1269502 |
|---|---|
| Manufacturer Model #: | B23E |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 1.95 " |
| Seal Material | Nitrile |
| Hex Size | 0.81 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
