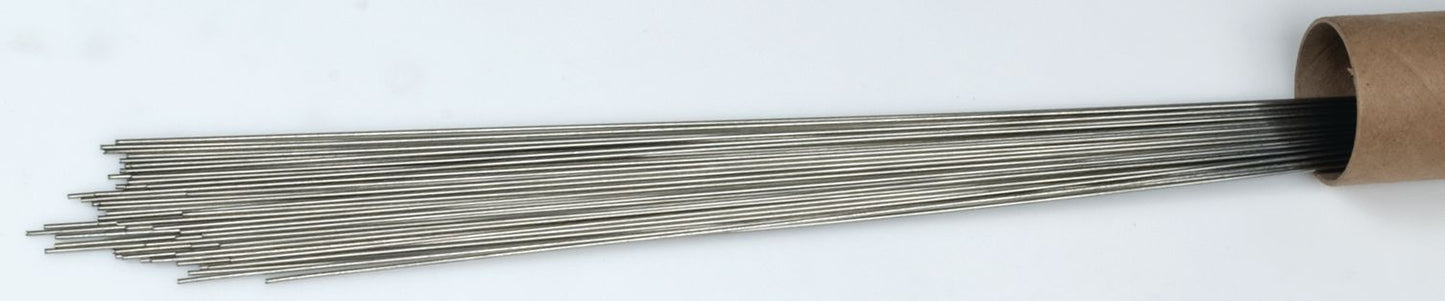

383 Stainless Steel TIG Wire, 100% Ar Shielding Gas, 35% Elongation, DCSP Polarity, 36" Length, 1/16"
(Pack of
2)
SKU:CW5175 Item#: CW5175
Ensure strong, reliable welds with the 383 Stainless Steel TIG Wire, designed for industrial maintenance and repair crews. This smooth-running, all-position 383 alloy simplifies the process of joining common 200 and 300 Series stainless steel, as well as dissimilar grades like CF-8, HF castings, and more. With minimal carbide precipitation, this industrial welding supply delivers superior corrosion and heat resistance, making it ideal for demanding applications like food and medical processing equipment, piping, tanks, and impellers. Plus, easy slag removal saves time, allowing you to focus on the task at hand without unnecessary delays.
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-13
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
3000 Nickel TIG Wire 1/8"
Couldn't load pickup availability
E309L-16 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Product Description
Ensure strong, reliable welds with the 383 Stainless Steel TIG Wire, designed for industrial maintenance and repair crews. This smooth-running, all-position 383 alloy simplifies the process of joining common 200 and 300 Series stainless steel, as well as dissimilar grades like CF-8, HF castings, and more. With minimal carbide precipitation, this industrial welding supply delivers superior corrosion and heat resistance, making it ideal for demanding applications like food and medical processing equipment, piping, tanks, and impellers. Plus, easy slag removal saves time, allowing you to focus on the task at hand without unnecessary delays.• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5175 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
