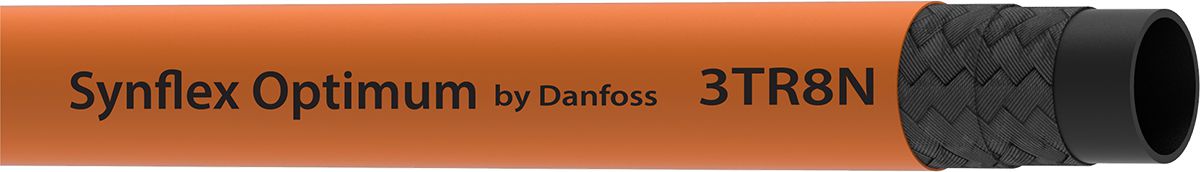

3TR8N, Hydraulic Hose, 2 Textile Braid, 1/4 (-4) " I.D., 250' Length, 5,100 PSI, SAE 100R8
(Pack of
250)
SKU:1677612 Item#: 1677612
• Agency Rating: 100R8
• Fittings Certified: 4TA Series, 1A/Z series with sleeve
• Construction:
– Inner Tube: Nylon
– Reinforcement: Double textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for air tools, cooling/misting/dust suppression, forestry delimber, general construction, general hydraulic, high pressure chemical transfer, marine steering, mobile machinery, utility vehicles, recreational vehicles and rescue tools/equipment.
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.82" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.65" x 250'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.87" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 50'
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/2" x 1/2-14
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.65" x 50'
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.85" x 250'
Couldn't load pickup availability
Product Description
• Agency Rating: 100R8• Fittings Certified: 4TA Series, 1A/Z series with sleeve
• Construction:
– Inner Tube: Nylon
– Reinforcement: Double textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for air tools, cooling/misting/dust suppression, forestry delimber, general construction, general hydraulic, high pressure chemical transfer, marine steering, mobile machinery, utility vehicles, recreational vehicles and rescue tools/equipment.
Technical Specifications
| Item#: | 1677612 |
|---|---|
| Manufacturer Model #: | 3TR8N-04-250BX |
| Type | Thermoplastic Hose |
| Category / Performance | Constant Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 3TR8N |
| Manufacturer Series Name | Synflex |
| Dash Size | -4 |
| Working Pressure | 5,100 PSI |
| Burst Pressure | 20,400 PSI |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 2 Textile Braid |
| Hose Cover Material | Non-Stick Polyurethane 3TR8N Non-perforated |
| Fitting Series | 4TA Series, 1A/Z Series with Sleeve |
| Temperature | Oil Basedluids = -40F to +212F / Water Basedluids = -40F to +150 F |
| Color | Orange |
| Size | 1/4 (-4) " |
| Length | 250 ft |
| SynFlex Part No. | 3TR8N-04-250BX |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 30.73 lb |
