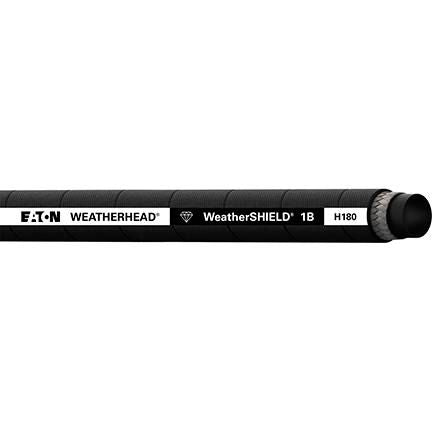

H180 WeatherSHIELD™ Hydraulic Hose, Synthetic Rubber, 1-Steel Braided, 1/2" ID, 0.78" OD, 50' Length, 3200PSI, SAE 100R17
(Pack of
50)
SKU:1560026 Item#: 1560026
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Rating: SAE 100R17, SAE 100 R1 and EN857 1SC Performance
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, DNV and USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One steel braid
– Cover: Dura-Tuff Premium Abrasion Resistance
• Operating Temperature Range: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids
Couldn't load pickup availability
Catalog page#: 8-10
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.87" x 250'
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.87" x 250'
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Rating: SAE 100R17, SAE 100 R1 and EN857 1SC Performance
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, DNV and USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One steel braid
– Cover: Dura-Tuff Premium Abrasion Resistance
• Operating Temperature Range: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids
Technical Specifications
| Item#: | 1560026 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating 2 | EN8577 Type 1SC |
| Industry Rating | MSHA, ABS, DNV and USCG |
| Manufacturer Series Number | H180 |
| Manufacturer Series Name | H180 |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.78 " |
| Working Pressure | 3,200 PSI |
| Burst Pressure | 12,800 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3.54 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Dura-Tuff Premium Abrasion Resistance |
| Temperature | High |
| Minimum Temperature | -50 F |
| Maximum Temperature | 260 F |
| Length | 50 ft |
| Dash Size | -8 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 16.0276 lb |
