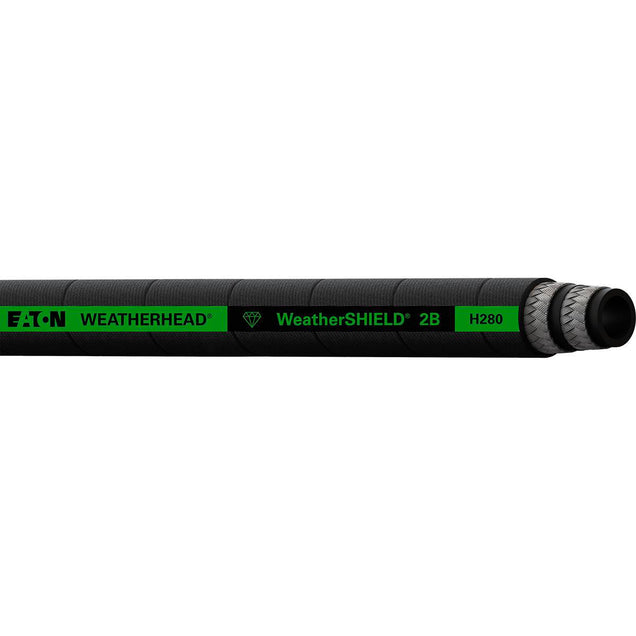

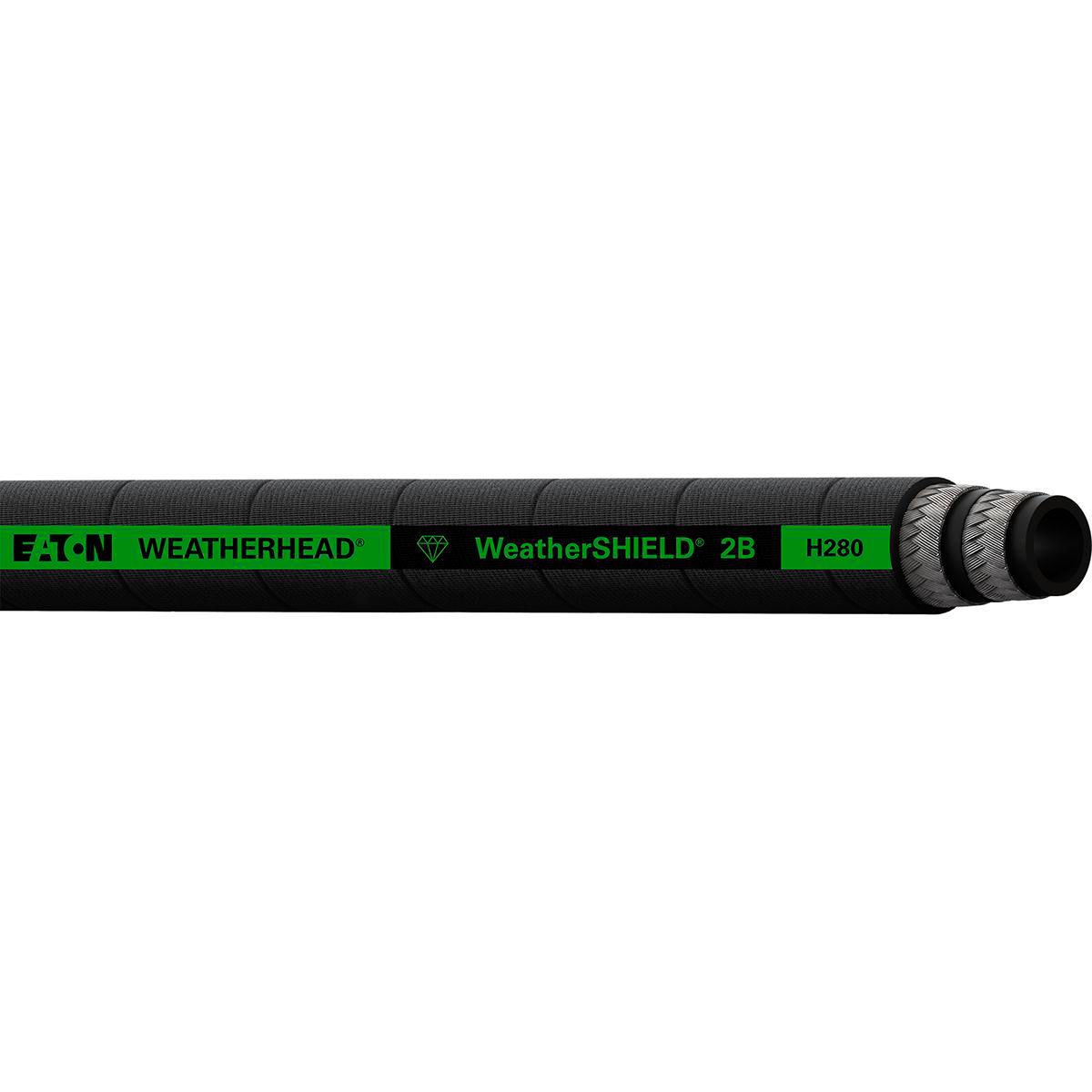

Weatherhead H280 Hydraulic Hose, Vinyl Nitrile, 2-Steel Braided, 1/2" ID, 0.81" OD, 250' Length, 4500PSI, SAE 100R16S
(Pack of
250)
SKU:50800 08 Item#: 50800 08
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Ratings: SAE 100R17, SAE 100R1, EN 857 1SC
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Dura-Tuff Premium Abrasion
• Temperature Range:
– Petroleum and Water based fluids: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Hydraulic systems service with petroleum and water-based fluids, for general use
Couldn't load pickup availability
Catalog page#: 8-11
Frequently Bought Together
Weatherhead H430 Hydraulic Hose 1-7/8" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 500'
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.924 x 0.116"
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.755 x 0.097"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 13/16-16
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 500'
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 50'
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
CryoBoost Drill Bit Set 29PC 1/16"-1/2" By 1/64" Increments
Couldn't load pickup availability
Nemesis Safety Glasses with Anti-Fog Coating, Smoke Lenses, Black Frame
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Ratings: SAE 100R17, SAE 100R1, EN 857 1SC
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Dura-Tuff Premium Abrasion
• Temperature Range:
– Petroleum and Water based fluids: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Hydraulic systems service with petroleum and water-based fluids, for general use
Technical Specifications
| Item#: | 50800 08 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating 2 | EN 857 1SC |
| Industry Rating | MSHA, ABS, USCG and DNV |
| Manufacturer Series Number | H280 |
| Manufacturer Series Name | DURA-TUFF |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.81 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Nitrile |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -50F to +260F, Water based fluids -50F to +260 F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 96.0 lb |
